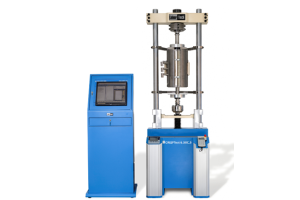

CREEP Test Machines for Quasi Dynamic Cycle Test


Electromechanical testing machines CREEP of the C.5 series in a vertical stand design up to 250 kN designed for quasi – dynamic cyclic testing and long – term tests. Constant precision loading with the possibility of cycling up to 2Hz is ensured by a central loading mechanism consisting of a central ball screw and a special mounting of a precision cycloidal gearbox with integrated AC servo drive. These machines are suitable for classic and advanced tests of creep, stress relaxation in the material, etc. at a constant homogeneous temperature in a high-temperature furnace with reliable declaration of results even after 10,000 hours of continuous loading. which requires maximum accuracy of force control and axial alignment.

KEY FEATURES OF TE C.5 SERIES

  • Material testing machine for classical creep tests with constant gravitational force.
  • Types of tests: crack growth / expansion tests, tear creep tests, rupture tests, classical creep tests.
  • Types of test standards: ISO 204, ASTM E139, EN 2002-005, ASTM E1457. Any load application with controlled force.
  • Coaxiality set according to ASTM E1012. Cross cutting edges contribute to axial alignment according to the requirements of ISO 204, ASTM E292, ASTM E139 and NADCAP.
  • Articulated clamping (using cutting edges) in two places.
  • System set by BENTROD unit – evaluation and optimization of concentric and edge alignment correction.
  • Based on their concept and construction, LABORTECH machines comply with all the above-mentioned EC directives on machinery and equipment.
  • Only state-of-the-art safety techniques and proven industrial components working in accordance with the following standards are used: EN ISO 12100: 2011, EN ISO 14120: 2017, EN ISO 60204-1 ed.3, EN ISO 13850: 2017, EN 61000-6-2 ed . 3, EN 614-1 + A1: 2009 etc.
