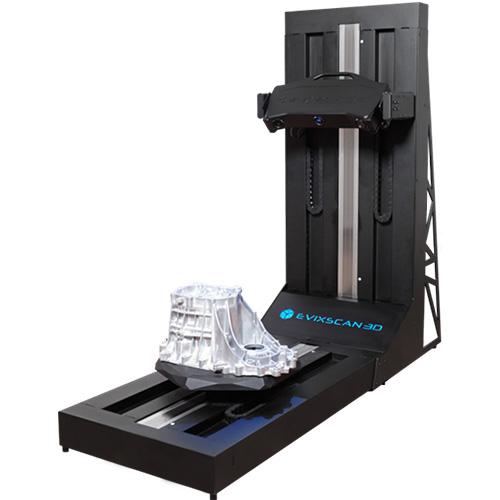

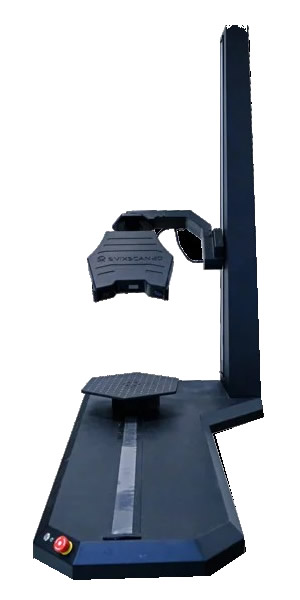

eviXmatic – Automated 3D Scanning and Inspection System

---



Designed and developed by Evatronix, eviXmatic is a four-axis automated measurement and scanning system that enables the full automation of quality inspection report generation. eviXmatic was created for use in precise and repetitive measurement applications and quality inspection tasks, and as such it can be integrated into automated or robotic production lines.

.

eviXmatic is a docking station for eviXscan 3D scanners, performing full-field, non-contact, high-precision object measurements. The eviXmatic scanner can also be used independently as a standalone scanning system.

.

Technical Data

Maximum scanned object dimensions: 250 × 650 × 250 mm

Maximum load capacity (object placed on rotary table axis): 30 kg

Maximum load capacity (object not centered on rotary table axis, e.g., near table edges): 10 kg

Number of axes: 4



Object movement:

Rotary table: 360°
Horizontal rotation: 700 mm linear movement



Desplazamiento del escáner 3D:
vertical: movimiento lineal de 800 mm

pivote: -10 ° ÷ 85 °



3D scanner movement:Vertical:

800 mm linear movement
Pivot: -10° ÷ 85°



Device dimensions:
Length: 1.443 m
Width: 0.515 m
Height: 1.234 m



Device weight: 51 kg
Rotary table diameter: 0.45 m
eviXmatic power: 230 V AC, 200 W



Power supply:
Quadro HD scanner: 230 V AC, 90 W HD
Optima scanner: 230 V AC, 36 W
