Anteus is provided with a 450 mm diameter screen and is in the medium size optical comparator range. Its performance can be increased by using a 5X magnification lens with 90 mm object field....
.
|
|
.
The system can be fitted with one of the following readout systems: 780-MT1000-CF Digital readout/data processor for X-Y table displacements, resolution 0,001 mm and projection screen rotation, resolution 1’. Besides the features of the standard unit, it is fitted with edge finder (optical sensor) for automatic data acquisition.....
|
|
.
ATLAS, available in two Versions with 600mm (23”), respectively 760 mm (30”) diameter screen, is a measuring system featuring the application of the latest developments in optics, optoelectronics, mechanics and electronics....
|
|
.

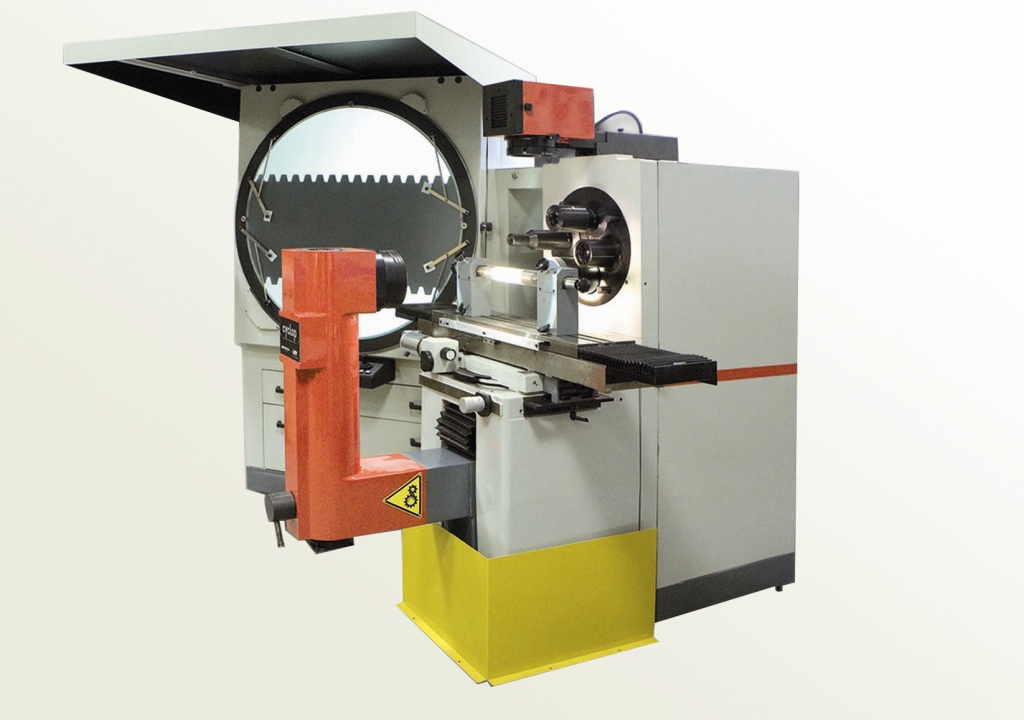

Characteristics: The Cyclop-1 features a screen size (1000 mm/40” dia.). The exceptionally large worktable (800 x 200 mm/31.5 x 7.87") positioned at the side of, and at an angle to the screen. Optical System: Cyclop-1 optical equipment includes 5, 10, 20, 25, 30, 50 and 100X. Magnification lenses optical condensers, 302 mm (11.88"). 680 mm (26.77") Ø Mirrors....
|
|
.
HELIOS is available in two versions: The 350H version is especially suitable for controlling cylindrical components that are fixed between dead spots or placed on "V" supports. The version 350 V is suitable for controlling small and thin components that are placed directly on the work table....
|
|
.
DIGITAL HEIGHT MEASUREMENT instrument with motorized vertical displacement. State-of-the-art multifunctional measurement system with soft color LCD touch screen. dim 7 ”, with intuitive, fast and easy-to-use graphical and alphanumeric reading to process measurements and advanced geometric calculations.....
|
|
.
MICRO is mainly aimed at the two-dimensional control of components used in the aeronautical, automotive, textile machinery, electrical-electronics, household appliances, rubber, and in all those cases in which a fast and precise control is required. It is also used for serial control parts....
|
|
.
The new ORION 400 profile projector is available in two models: Orion 400-H with horizontal projection system. Orion 400-V with vertical projection system. Both models are fitted with a 400 mm diameter screen ....
|
|
.
SCREEN SIZE Sirius is provided with a 500 mm diameter screen and it is placed in the medium size optical comparator range. DESIGN FEATURES Sirius is characterized by an illumination system on the horizontal and vertical projection screen...
|
