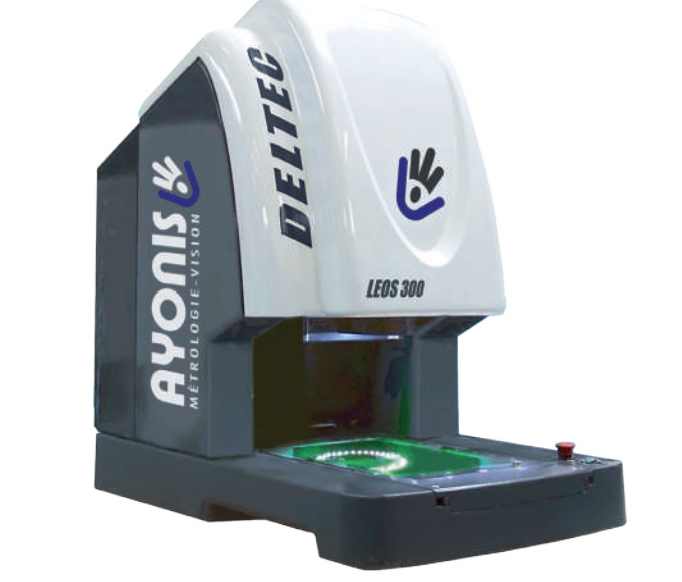

DELTEC LEOS - 3D Multisensor CMM

---



This machine combines all the tools required for your dimensional metrology needs (software package and 3D structure).



Suitable for all types of inspections: first article, in-process, laboratory, incoming, outgoing, and during production...



Self-learning programming.



Automatic inspection of single or multiple parts through matrix execution.



Ergonomic workstation with one or two monitors.



Machine Structure

•
• Cast aluminum alloy structure

• Measurement capacities (X, Y, Z): 200 x 200 x 150 mm / 200 x 300 x 150 mm

• Load capacity: 10 kg

• Crossed roller guides

• Encoder resolution: 0.5 microns

• X, Y, Z speeds: up to 75 mm/s



Measurement Uncertainties (2σ)

• XY E2: (± 2.5 + 5L/1000) microns (vision, probe)

• Z E1: (± 4 + 5L/1000) microns (vision)

• Z E1: (± 2.5 + 5L/1000) microns (probe)



 Vision System:



• 1.3 MPX high-definition black-and-white digital camera

• Programmable lighting systems:

• • 8-sector episcopic white LED

• • Coaxial LED

• • Collimated green diascopic LED

• Motorized zoom with 6 indexed positions

• Magnifications from x30 to x200 (for reference with full-field display on a 24" monitor)

• Second wide-field camera for automatic inspection of multiple parts

• Easy positioning thanks to laser pointer







---
