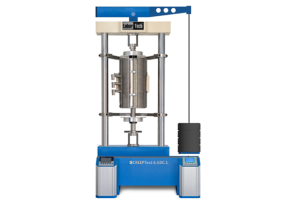

LABORTECH offers testing machines for long-term tests C.1, where a constant load is derived by a lever mechanism and weight. All modifications of CREEP test systems C.1 manufactured by us are designed so that the customer can fully rely on its function and accuracy under long-term constant loading (material flow) with force or stress, including elongation and at a constant homogeneous temperature in a high temperature furnace with reliable declaration of results. even after 100,000 hours of continuous loading.

KEY FEATURES OF C.1 SERIES

• Material testing machine for classical creep tests with constant gravitational force.
• Types of tests: crack growth / expansion tests, tear creep tests, rupture tests, classical creep tests.
• Types of test standards: ISO 204, ASTM E139, EN 2002-005, ASTM E1457.
• Any load application with controlled force.
• Coaxiality set according to ASTM E1012.
• Cross cutting edges contribute to axial alignment according to the requirements of ISO 204, ASTM E292, ASTM E139 and NADCAP.
• Articulated clamping (using cutting edges) in two places.
• System set by BENTROD unit – evaluation and optimization of concentric and edge alignment correction.
• Based on their concept and construction, LABORTECH machines comply with all the above-mentioned EC directives on machinery and equipment.
• Only state-of-the-art safety techniques and proven industrial components working in accordance with the following standards are used: EN ISO 12100: 2011, EN ISO 14120: 2017, EN ISO 60204-1 ed.3, EN ISO 13850: 2017, EN 61000-6-2 ed . 3, EN 614-1 + A1: 2009 etc.
