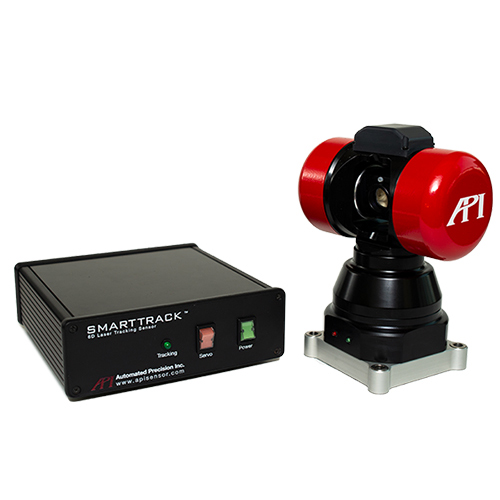

SmartTrack™ - 6D Laser Tracker Scanner
For Large-Scale Measurement and Alignment Applications
The SmartTrack™ Sensor for API laser tracking systems is a major breakthrough for large-scale measurement and alignment applications.
This measurement tool provides automatic 6 degrees of freedom (6DoF) measurement for dynamic precision applications by determining position (x, y, z) and rotational orientation (pitch, yaw, roll) of a tracked point in real time.
It reveals the true position and orientation of a moving target, such as a robotic end effector.
There is no longer a need to use three trackers to determine part orientation in real time.
.
Applications:
- Large assembly alignment
- Machine tool calibration (5-axis)
- CMM calibration
- Robot calibration
- Hidden point measurement
.
Portability:
Weighing only 1.4 kg (3.1 lbs), the compact SmartTrack™ Sensor is ideal for direct mounting on alignment fixtures and robotic arms.
SmartTrack™ Operation:
A motorized receiver inside the SmartTrack operation sensor tracks the laser beam, providing real-time object position and yaw information. A patented roll detection system provides the object’s roll angle.
The SmartTrack Sensor greatly simplifies instrument and software complexity for performing intricate alignment tasks.
Los sensores láser tracker son instrumentos de medición de alta precisión que utilizan un haz láser para determinar las coordenadas tridimensionales (3D) de un objeto. Funcionan enviando un rayo láser a un objetivo retrorreflectante (un tipo de espejo) colocado sobre el objeto y midiendo la distancia y los ángulos a los que regresa la luz. Este proceso permite medir con gran exactitud las dimensiones de objetos grandes en aplicaciones como inspección de piezas, montaje industrial y calibración.
