Laser Scanners for Measuring Arms and CMMs

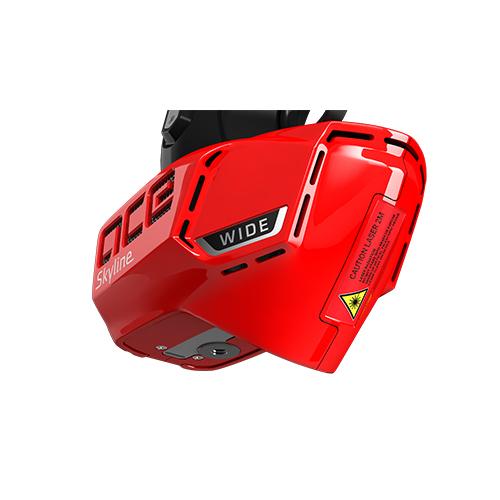

Ace Skyline - Laser Scanner   Available with 100 mm and 200 mm laser lines, the Ace Skyline 3D scanners are high-end products capable of easily scanning the most complex parts in record time. Their blue laser lines allow scanning of black and shiny surfaces, which are considered the most difficult to measure...          .

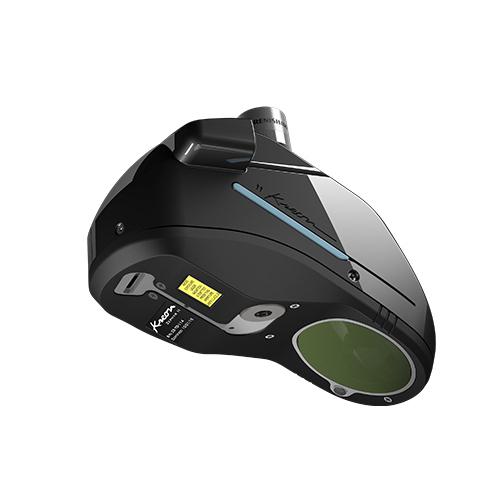

Zephyr II Blue- Laser Scanner    Designed for specific applications, the Zephyr II Blue is capable of performing highly precise measurements at high speed. The blue laser is optimized for shiny and matte surfaces. Zephyr II scanners can also be integrated into various systems such as measuring arms, CMMs, and even robots...           ..

. Zephyr III - Laser Scanner   The laser line width and scanning speed of the Zephyr III allow any part to be digitized in the blink of an eye. Its precision detects the smallest details of the most complex components...

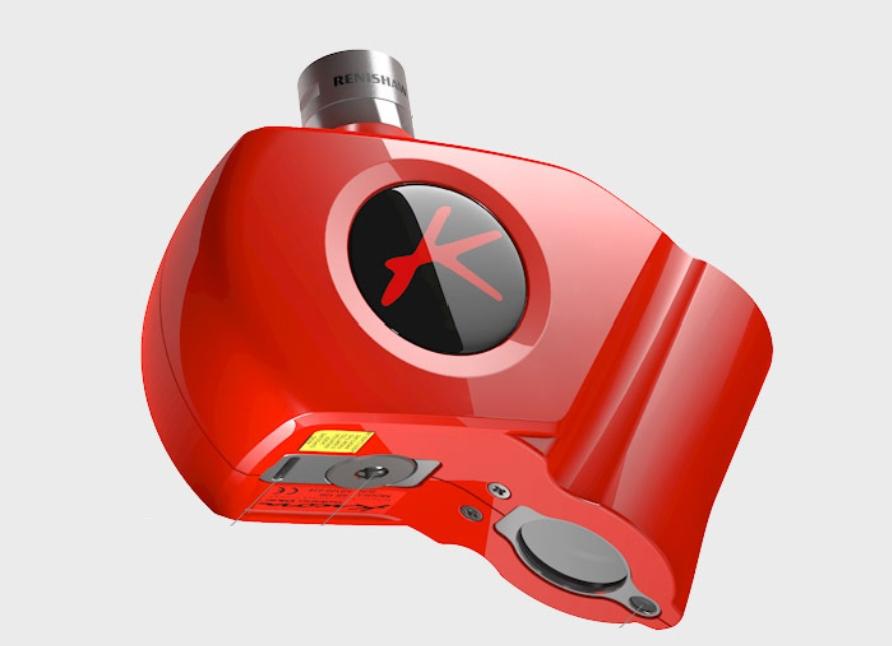

Solano Blue - Laser Scanner   Precision does not have to be expensive. Thanks to blue laser technology, the Solano Blue combines accuracy with an excellent price-performance ratio. It can connect to any type of measuring arm without an external controller, allowing scanning of highly reflective surfaces...          .

Solano CMM - Laser Scanner   Equipped with a red laser, it enables fast and precise scanning of most industrial parts. In addition, integration of a Renishaw TP 2/20/200 probe allows both contact and non-contact measurement simultaneously...          ..

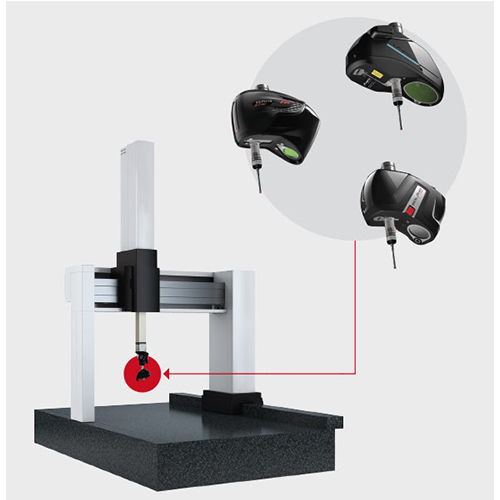

CMM Retrofit   Provides automatic calibration of scanner positions on the indexing head. It uses a probe connected directly under the scanner or allows switching between scanner and probes using an automatic change rack...         .

    Return to POLYMER AND PACKAGING TESTING ←  3NH Spectrophotometers ←

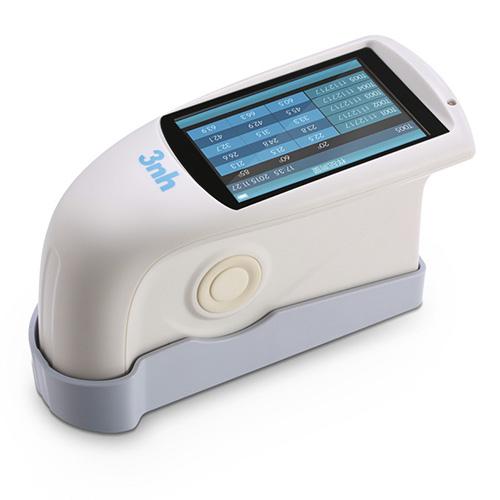

NHG268 - 20/60/85 Degree Gloss Meter

The NHG268 Gloss Meter features 20°, 60°, and 85° measurement angles and is manufactured in accordance with ISO 2813 and GB/T 9754 standards.

It is also compliant with ASTM D523 and ASTM D2457 standards. The NHG268 meets the requirements of JJG696 First-Class Gloss Meters, corresponding to CIE 1931 (2° Observer) under the CIE C light source.

The NHG268 is capable of measuring high-gloss materials from 0 to 2000 GU (Gloss Units) and is widely used for gloss measurement and data transmission in industries such as paints, inks, baking varnishes, coatings, wood products, marble, granite, polished vitrified tiles, ceramic bricks, porcelain, plastics, paper, and hardware manufacturing.

Features

• 3.5-Inch Touchscreen Display: Equipped with a large capacitive touchscreen for intuitive navigation through shortcut menus and quick access to measurement functions.
• Multi-Angle Measurement: Simultaneously measures gloss at the three standard angles of 20°, 60°, and 85°, allowing real-time comparison of results across different surface finishes.
• High Accuracy: Complies with the first-grade accuracy requirements specified in the JJG696 standard.
• Wide Measurement Range:
  • 0–2000 GU at 20°
  • 0–1000 GU at 60°
  • 0–160 GU at 85°
• Multiple Operating Modes: Includes Basic, Statistical, and Continuous modes to meet a variety of industrial inspection and quality control requirements.
• Large Data Storage Capacity: Stores up to 1,000 records in Basic Mode and up to 5,000 records in Statistical and Continuous Modes.
• Long-Life Battery: Powered by a 3200 mAh Li-ion battery, capable of performing more than 10,000 measurements per charge.
• Connectivity and Software: Features a USB interface and is fully compatible with GQC6 software for quality management, data analysis, and professional report generation.

      (Agrandar)

    Return to POLYMER AND PACKAGING TESTING ←  3NH Spectrophotometers ←

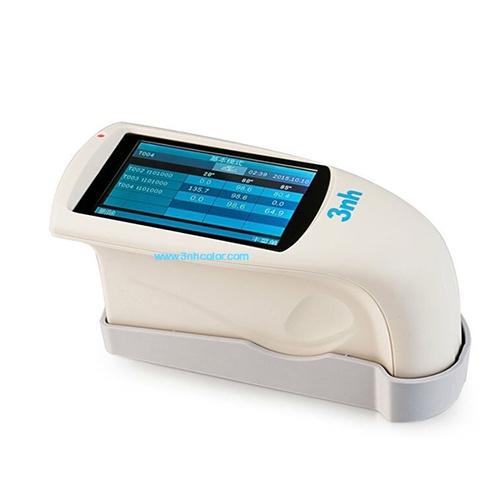

NHG60 - Gloss Meter

The NHG60 Gloss Meter features a 60° measurement angle and is manufactured in accordance with ISO 2813 and GB/T 9754 standards.

It is also compliant with ASTM D523 and ASTM D2457 standards. The NHG60 meets the first-class requirements of JJG696 gloss meters, corresponding to CIE 1931 (2° observer) under the CIE C light source.

The NHG60 Gloss Meter is capable of measuring materials with gloss levels ranging from 0 to 1000 GU (Gloss Units). It is widely used across various industries for gloss measurement and data transmission, including:

• Paints and coatings
• Printing inks
• Baking varnishes
• Wood products
• Marble and granite
• Polished vitrified tiles
• Ceramics, bricks, and porcelain
• Plastics
• Paper
• Hardware and metal finishing industries

      (Agrandar)

   Return to POLYMER AND PACKAGING TESTING ←   Plastic Testing Equipment - PTS/JJ Test ←  Impact Pendulums ←

XJLD - Charpy Impact Tester

The Tensile Impact Tester is an instrument used to perform impact tests on thermoplastic materials in order to determine their impact brittleness characteristics under specific tensile stress conditions.

Features

• Two types of display are available:
  • Digital dial display
  • Mechanical dial display
• The digital display version features an automatic energy loss calibration function.
• High precision, excellent stability, and easy operation.
• CE-certified design, allowing global commercialization and distribution.
