Static Servohydraulic Universal Testing Machines (Labortech)

........................................................................................................................................

All our hydraulic testing machines are designed to deliver maximum reliability, even in the most demanding mechanical material testing applications.

LABORTECH’s intuitive testing software ensures easy operation, reliable integration with your company’s network, and compatibility with a wide range of accessories.

Our goal is to provide modern technical and technological solutions, supported by high-quality services in the field of testing..

Our specialists are ready to assist you in selecting the machine that best meets your specific requirements..

We Offer the Following Options:

......

Servohydraulic Universal Testing Machines

The H.1 and H.2 servohydraulic testing machines, with capacities of up to 5 MN, are designed for safe and efficient testing of materials and complete products in tension, compression, bending, and specialized testing of high-strength materials..

Featuring hybrid control of hydraulic grips with HALT 18 or HALT 25 diagnostics – SIEMENS...

.

Hydraulic Universal Testing Presses

The H.4 series hydraulic testing presses, with designs of up to 10 MN, are intended for mechanical testing in compression and bending of steel plates, concrete blocks, beams, and other components.

The basic equipment of the machine includes a central hydraulic drive from the HAS series, designed to be quiet and energy-efficient...

Sheet Metal Universal Testing Machines

Universal sheet metal testing machines of the EC series, available in bench-top or floor-standing versions, are primarily designed for the measurement and testing of deep-drawn sheets using the ERICHSEN method.

These machines are ideal for research and development, as well as for routine quality control in laboratories, testing rooms, and production plants, where they support development processes for the characterization of new alloys and processing techniques, as well as subsequent mass production.

Servo-Hydraulic Test Bench for Automotive Towing Devices LabTest 7.40H.10-TDS

The LABORTECH LabTest 7.40H.10-TDS is a high-performance servo-hydraulic test bench designed for static, dynamic, and fatigue testing of automotive towing devices. By combining synchronized multi-axis loading with advanced control software, it accurately reproduces real-world operating conditions, helping manufacturers improve product durability, reliability, and overall quality...

Back to Universal Testing Machines ← LaborTech-Universal Testing Machines←

Fatigue and Dynamic Universal Testing Machines

.....................................................................................................................................

.We Offer the Following Options:

LABORTECH offers comprehensive solutions for dynamic and fatigue testing of materials. These fully integrated testing systems include servo-hydraulic, servo-electric, and linear actuators with capacities ranging from 500 N up to 2 MN.

These systems are designed to reliably perform high-cycle and low-cycle fatigue tests, crack initiation and growth analysis, biaxial and axial-torsional testing, as well as fracture toughness evaluation.

Users can efficiently carry out tests in accordance with international standards, including:

- ISO 12106 – Low-cycle fatigue testing under strain control
- ASTM E606 – Standard test method for strain-controlled fatigue testing
- DIN 50100 – Testing of metallic materials using the Wöhler curve method
- ASTM E399 – Fracture toughness determination (K_IC)
- ASTM E647 – Fatigue crack growth rate testing
- ASTM E466 – Standard test method for axial fatigue testing

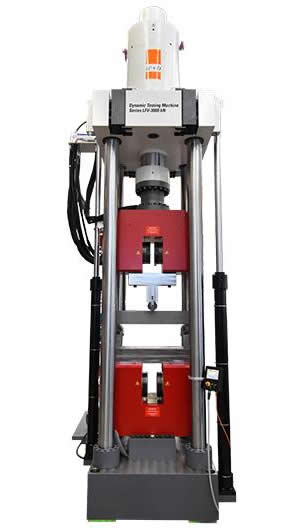

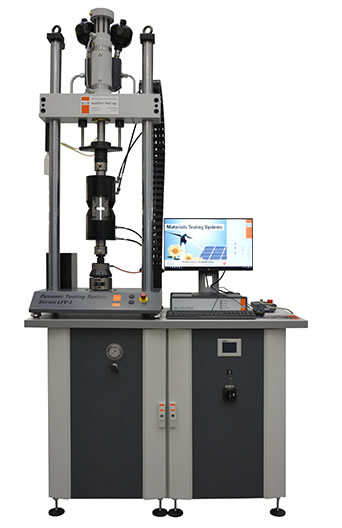

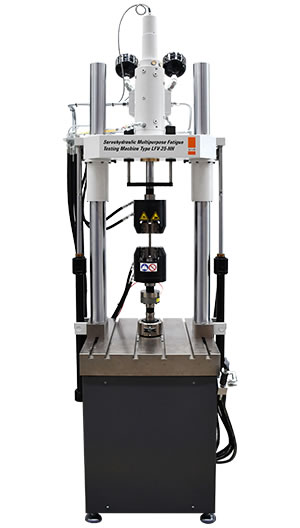

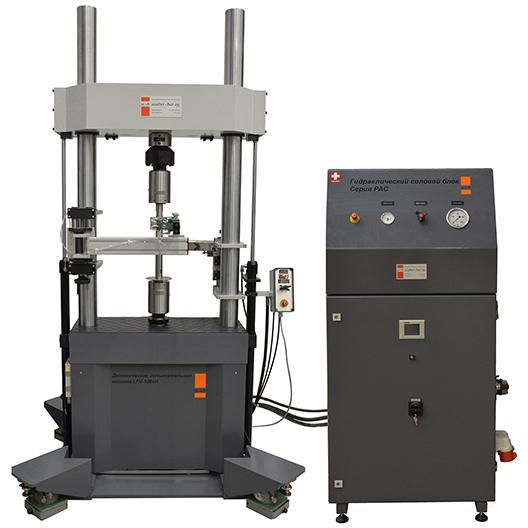

- Servo-hydraulic testing machines, H.5 series
- Axial-torsional servo-hydraulic systems, H.8 series
- Biaxial and triaxial systems, H.11 and E.11 series
- Electrodynamic testing machines, EP series, with test frequencies up to 200 Hz

......

Biaxial and Triaxial Universal Testing Machines

The H.11 series servo-hydraulic biaxial testing systems are designed for low- and high-cycle fatigue testing, fracture toughness evaluation, and crack propagation analysis, among other applications...

.

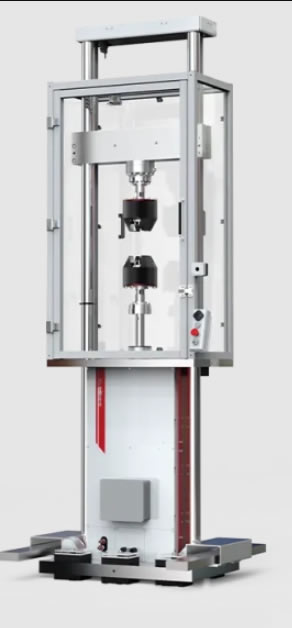

Electromechanical Dynamic Universal Testing Machines

The EP series electromechanical linear dynamic testing machines, based on linear motor technology, are designed to test a wide range of materials and components in both dynamic and static modes.

They are ideal for applications requiring clean, quiet, and oil-free operation, such as in the plastics, aerospace, and medical industries. These systems offer testing frequencies of up to 200 Hz...

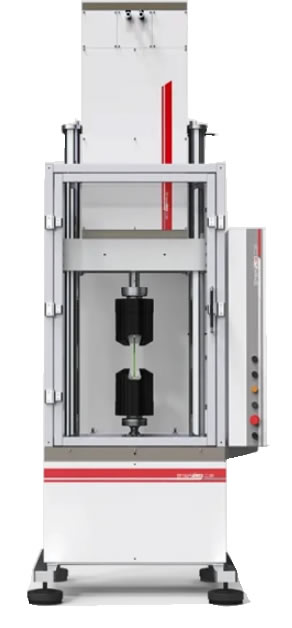

Low-Cycle Electrodynamic Universal Testing Machines

The LC series electrodynamic testing machines are designed for testing materials, components, and structures in laboratories, research centers, and industrial environments.

Unlike high-cycle systems, these machines operate at lower frequencies and perform fewer loading cycles, applying tension, compression, and torsion under various temperature conditions...

Static and Dynamic Test Benches

The H.10 series hydraulic dynamic test benches are designed for forces up to 10 MN. They feature T-slot plate platforms or load-bearing structures and are intended for low- and high-cycle fatigue testing of components or full-scale products...

Back to Universal Testing Machines ← LaborTech-Universal Testing Machines←

Testing Equipment for Long-Term CREEP Testing

..

..................................................................

All versions of our CREEP testing systems are designed to ensure full customer confidence in their performance and accuracy during long-term constant loading (material creep), whether under force or stress control, including elongation measurement and operation under stable, homogeneous temperature conditions in high-temperature furnaces.

The intuitive and user-friendly long-term testing software developed by LABORTECH guarantees reliable test results, even after 100,000 hours of continuous loading.

Available Solutions:

......

Creep Universal Testing Machines with Lever and Dead Weight System

LABORTECH offers creep testing machines for long-term testing, where a constant load is applied using a lever mechanism with a spring and a control force sensor.

All versions of these creep testing systems are designed to provide reliable and precise performance under long-duration loading conditions...

.

Creep Universal Testing Machines for Quasi-Dynamic Cyclic Testing

The C.5 series electromechanical creep testing machines, featuring a vertical floor-standing design and capacities of up to 250 kN, are designed for quasi-dynamic cyclic testing and long-term applications.

They provide precise constant load application with the possibility of cyclic loading up to 2 Hz...

.

Long-Term Creep Universal Testing Machine with up to 6 Axes

The CREEPTest 7.xxx system enables simultaneous testing on up to six independently controlled axes, each with independent load application, control, and measurement...

It is suitable for operation at room temperature as well as at low temperatures down to –60 °C.

Return to Universal Testing Machines ←

Universal Hydraulic Traction Machines (PTS)

The PTS line of hydraulic universal tensile testing machines includes standard features and accessories that many other manufacturers offer only as optional—or may not offer at all.

Key features and accessories include:

Load cell technology for force measurement
Hydraulic grips mounted on the crosshead
Servo control system
MaxTest software
Computer system
Bending fixture
Compression platens
Complete set of inserts

We Offer The Following Products:

........................................................................................................................................

In addition to the standard hydraulic tensile testing machines, PTS introduces its innovative line of low-capacity hydraulic universal testing machines (HLC Series).

....

HLC-150 Series – Low-Capacity Hydraulic Universal Testing Machine

The HLC-150 is an ideal solution for a wide range of applications, delivering reliable performance at an affordable price...

HL Series – High-Capacity Hydraulic Universal Testing Machines

The HL Series introduces load cell technology into high-capacity testing.

This force measurement technology provides greater accuracy and enhanced flexibility.

Key features::

- Precise force measurement using load cell technology
- Interchangeable load cells for improved accuracy
- Rigid four-column, dual-screw design with compact construction

HT Series – Hydraulic Universal Testing Machines

The HT Series is specifically designed for very high-capacity applications, with capacities of:

1000 kN (225,000 lbs)
2000 kN (450,000 lbs)

The HT design simplifies specimen loading and unloading in tensile tests by positioning the tensile test space in the lower area, thanks to its actuator configuration.

(Agrandar)

Return to 3D MEASUREMENT AND TESTING SERVICES←

.

Dynamic 9D LADAR | Laser Detection and Ranging

The fastest and most precise non-contact interferometry-based measurement system in the world.

.

Dynamic 9D LADAR is an innovative technology that represents the fastest and most accurate non-contact measurement system in the world.

Its fast and precise real-time 9D LADAR data acquisition is designed to revolutionize automated in-line production measurements and conventional laser radar systems that require large sample averaging to achieve reasonable accuracy, effectively reducing data acquisition rates.

....

⇒ Designed for Durability
API’s compact and rigid UNIBODY tracker design allows for shaft-mounted motors, encoders, and laser systems. The UNIBODY shaft-mounted laser innovation minimizes Abbe offset errors while also housing the laser source, optics, camera, and main electronic components of the tracker head at the center of the body.

⇒ Fast and Efficient Warm-Up Time

The UNIBODY design and centralization of all heat sources allow rapid heat distribution throughout the body during warm-up or drastic ambient temperature changes, ensuring the tracker maintains stable thermal balance during operation. This results in shorter warm-up time and superior measurement stability.

⇒ Advanced Technology
9D LADAR is an innovative technology designed to revolutionize automated production measurement. The patent-pending 9D LADAR is the fastest and most precise non-contact interferometry-based measurement system, incorporating Optical Frequency Chirp Interferometry (OFCI) technology.

⇒ Laser Detection and Ranging
9D LADAR captures surface geometry and dimensional data for all manufacturing industries, including but not limited to: automotive, aerospace, shipbuilding, energy, transportation, machine tools, robotics, and construction.

The fastest, most precise non-contact interferometry measurement system in the world

Features:

Applications::

The Dynamic 9D LADAR undergoes rigorous testing and certification beyond the B-89 industry standard
Optical CMM: from small to large volume, easy to set up, fast and accurate
On-site CNC machine inspection
In-line inspection and dimensional control for aerospace, automotive, wind energy, and similar industries
Gap and flush measurement
Part measurement
Inspection of jigs, fixtures, and tools
Reverse engineering
Robotics
X,Y,Z dimensions – I,J,K and R,G,B

(Agrandar)

¿que es dynamic ladar 9D? Dynamic 9D LADAR es un sistema de metrología óptica automatizada y sin contacto de la empresa Automated Precision, Inc. (API), diseñado para capturar datos de geometría dimensional y superficial de manera rápida y precisa. El término LADAR se refiere a la detección y medición por láser (Laser Detection And Ranging), y es una tecnología avanzada de medición dimensional.Está diseñado para revolucionar las mediciones de producción automatizadas en sectores como la industria automotriz.

Captura de datos 9D: Además de las tres dimensiones espaciales (3D), el sistema integra datos de geometría superficial, lo que resulta en una medición "9D" más completa.
En esumen: El Dynamic 9D LADAR es un sistema industrial de metrología que utiliza una forma avanzada de medición de distancias por láser, combinando la detección láser con la interferometría para capturar datos de geometría superficial y dimensional con una precisión y rapidez excepcionales. La medición de distancias por láser es una tecnología fundamental que opera bajo el principio del tiempo de vuelo y se aplica en una amplia variedad de dispositivos, desde telémetros sencillos, Sensores de distancia láser hasta avanzados sistemas LiDAR y el propio Dynamic 9D LADAR.
