EasyMESUR® Software for Mark-10

Series F Motorized Test Stands

---

 Advanced Test Control, Analysis, and Data Management.



EasyMESUR® software is an advanced and intuitive platform designed for complete control of force and displacement testing on Series F motorized test stands. It was developed to simplify test execution, improve result repeatability, and optimize productivity in testing laboratories, production environments, and quality control applications.

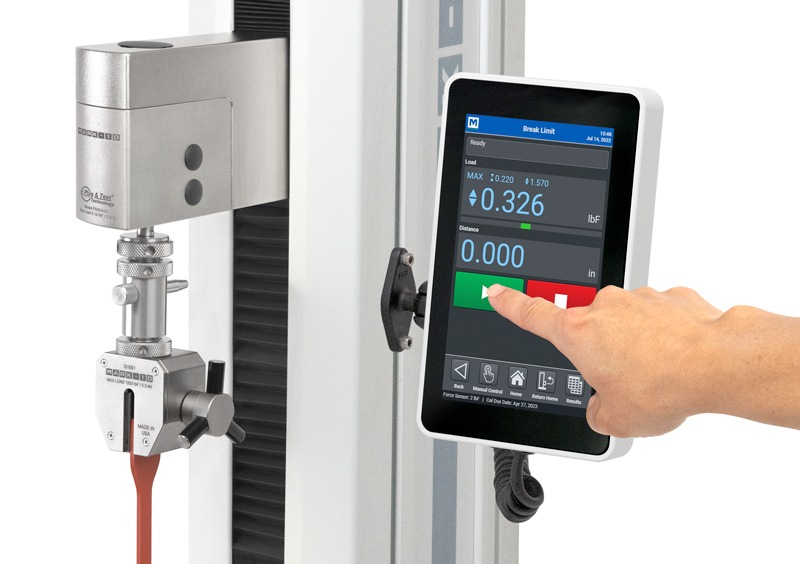

The integrated EasyMESUR® control panel centralizes test setup, test frame control, and data acquisition in one convenient location. Using the 7-inch touchscreen display, users can create and execute a wide variety of tests without the need for an external computer or force gauge. This reduces system complexity and makes operation easier for users of all experience levels.

Complete Test Control Through an Intuitive Interface

The software features a clear and customizable graphical interface that can be adapted for both basic applications and advanced testing requirements. The run screen can be configured with large, simple controls for production environments or enhanced with more comprehensive functionality for laboratory and product development applications.

Key control capabilities include:

• Tensile and compression test configuration
• Testing to a specified force or distance limit
• Break testing
• Load holding tests
• Average force testing
• Automatic load and unload cycling
• Automatic stops based on force, distance, or event conditions



Advanced Features and Modular Platform

EasyMESUR® is built on a modular platform, allowing additional features to be enabled according to user requirements. These functions can be purchased at the time of order or activated later through software license codes, providing exceptional flexibility and system scalability.

Optional features include:

• Distance/displacement measurement and control
• Force vs. time and force vs. displacement graphing
• Repetitive cycle programming
• Custom test modes
• Advanced results analysis



All systems are supplied with a 160-hour evaluation mode during which all available features can be tested before permanent activation.



Precise Positioning with Force-Based FollowMe®

One of the most valuable EasyMESUR® features is the FollowMe® positioning system, which greatly simplifies sample setup and fine positioning.

Using this feature, the operator can manually push or pull the force sensor or load cell, causing the test stand crosshead to move smoothly and proportionally to the applied force.

This technology improves ergonomics, positioning accuracy, and operator safety, particularly in repetitive setups or when testing delicate specimens.

Benefits include:



• Fast and precise adjustments
• Reduced test setup time
• Lower risk of damaging specimens or fixtures
• Improved operator comfort



Data Acquisition and Report Generation

EasyMESUR® provides efficient management of test data for both individual tests and complete production batches. The system automatically records results and simplifies data export and documentation.

Data management capabilities include:

• Automatic test data recording
• Internal result storage
• Data export for external analysis
• Test report generation
• Support for traceability and quality control requirements



For specialized applications, the system can also be operated from an external PC using custom software through the EasyMESUR® serial command library, making it ideal for integration into automated systems.



Ideal for Demanding Applications

EasyMESUR® is the ideal platform for industries and organizations that require precise and reliable force measurement, including:

• Materials testing laboratories
• Industrial quality control departments
• Research and Development (R&D)
• Manufacturing industries
• Mechanical performance evaluation of components



Its combination of ease of use, analytical power, and modular architecture makes EasyMESUR® a modern standard for professional mechanical testing applications.



---------



---
