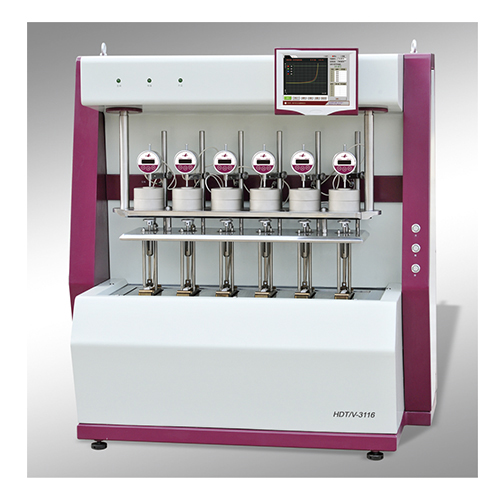

HDT / V3116 - Touch Screen Control Tester

---



The HDT/V3116 Tester is designed to determine the Heat Deflection Temperature (HDT) and the Vicat Softening Point of plastic materials.



During testing, all specimens are subjected to a constant load and immersed in a heating bath where the temperature increases at a standardized rate. The heat resistance achieved by the plastic material is a critical parameter widely used for product characterization, quality control, material comparison, and verification of suitability for intended applications.



An optional software package enables the generation of graphical reports showing specimen deformation and temperature increase as a function of time, providing detailed analysis of material behavior under thermal loading conditions.



Features

• Mechanical Structure: Bench-top design with automatic lifting system.
• Control System: Intuitive touchscreen interface.
• Temperature Measurement: One temperature sensor dedicated to each testing station.
• Number of Stations: 6 testing stations for simultaneous specimen evaluation.
• Fume Extraction System: Integrated exhaust system for improved laboratory safety.
• Automated Testing Process: Ensures accurate and repeatable results.
• Real-Time Monitoring: Continuous tracking of temperature and specimen deformation.
• Optional Analysis Software: Generates deformation and temperature curves for advanced material characterization.
