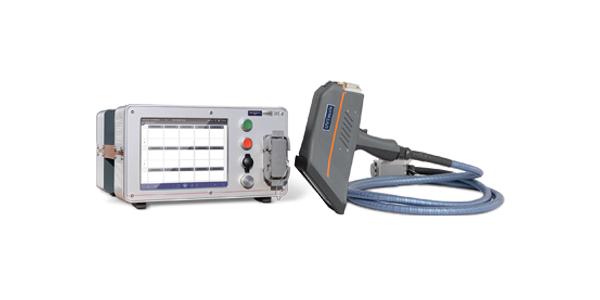

PMI MASTER Smart Optical Emission Spectrometers

Complete Metal Analysis: A Portable Laboratory

---





When you need reliable analysis of steels and other alloy materials such as aluminum, nickel, and copper in safety-critical environments, you require an OES spectrometer that delivers fast and dependable analytical performance from the very first measurement.



The PMI-MASTER Smart OES analyzer, manufactured in Germany, requires almost no warm-up time and is lightweight and compact, making it ultra-portable so it can be easily taken wherever needed—whether at heights, in trenches, in external or internal inspection areas, or in the laboratory.



Easy to Use

• Simple recalibration process
• Stable measurement results even with environmental temperature changes

Reliable Results

• Low detection limits not only for C, but also for P, S, B, As, and Sn in stainless and low-alloy steels
• Nitrogen analysis in duplex steels

Hot Sample Measurement

Reliable measurement of elements including C and Si on hot surfaces up to 300°C

• .

Data Management

• Cloud-based data services via ExTOPE Connect
• Easy-to-use, customizable report generator
• Share results with remote devices and export to other software



Additional Key Features:







Portability and Convenience

Thanks to its lightweight and compact design, the PMI-MASTER Smart can be easily transported for on-site analysis.



It is delivered in transport-ready cases that can be taken directly to the measurement location.

Rechargeable battery provides:



• 10 hours standby
• 450 spark measurements
• 900 arc analyses

.

The device can also operate via power supply/charger, with or without a battery, even while charging.



Next-Generation Technology



Multi-CCD Readout System



• High resolution
• Virtually unlimited spectral channels for full-spectrum analysis
• Easily expandable with additional bases and subprograms



 Jet-Stream Technology

• • • Ensures accurate analysis of irregular and complex-shaped samples
    • Measures wires as thin as 1 mm using a universal adapter
    • Precise analysis of pipes, bars, valves, welds, joints, storage tanks, turbines, and curved surfaces
    •

Analytical Performance

• Precise identification and analysis of materials including:

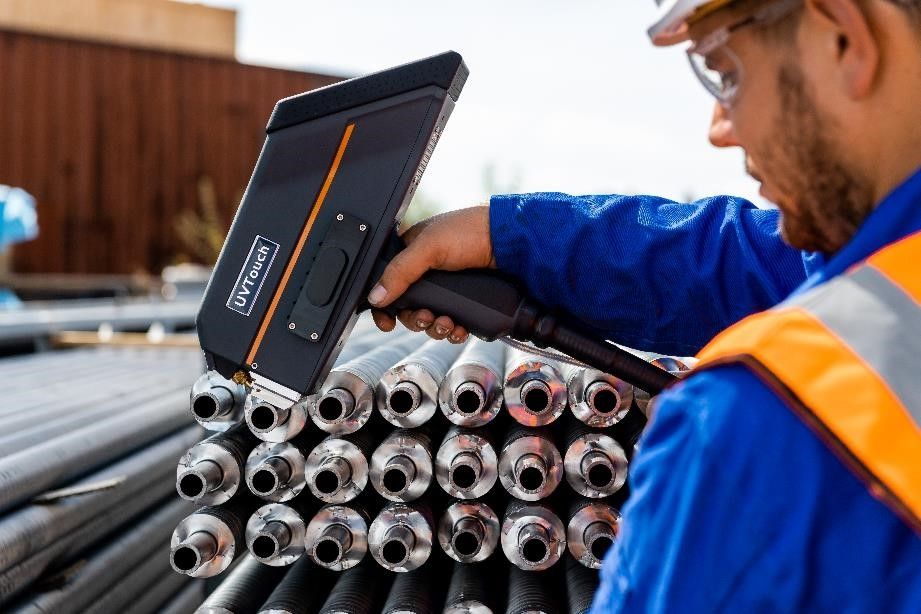

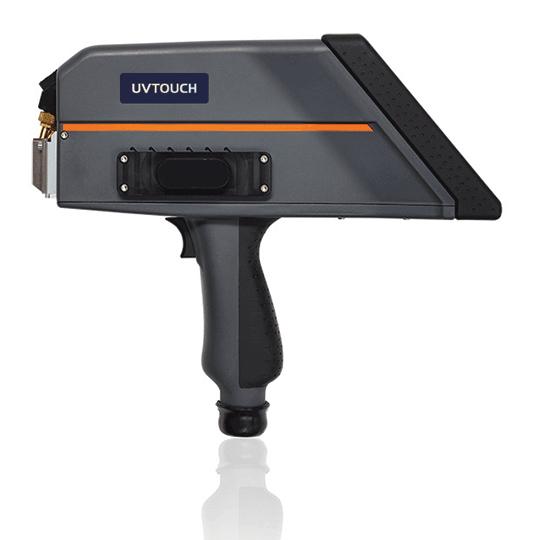

  N, C, P, S*, Sn*, As*, and B*** (with UV Touch probe)
• Suitable for Fe, Al, Cu, Ni, Ti, Mg, Co, and Zn alloys
• Immediately ready for use—no warm-up phase required
• Fully automatic optical system adjustment



Low Operating Costs

• Minimized argon consumption
• Easy maintenance





Built for Durability

• Optimized for harsh environments

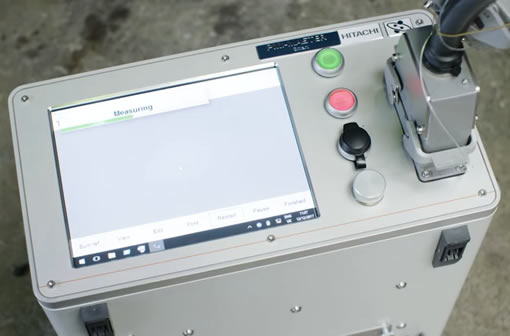

• Dust-proof TFT touchscreen
• Temperature control with overheat protection

•

• Revolutionary Optics

• • First and only Flatfield multi-CCD optical system with carbon fiber construction
  • Ultra-compact and extremely lightweight
  • Mechanically highly stable
  • Wide wavelength range with optimal resolution




---



   (Agrandar)

 ¿Qué es un espectrómetro de emisión óptica portátil? Un Espectrómetro de Emisión Óptica portátil (Portable OES) es un instrumento de medición compacto y transportable que permite analizar rápidamente la composición química de metales y aleaciones directamente en el lugar donde se encuentran, sin necesidad de llevar las muestras a un laboratorio.
