TPH 01 Temperature and Humidity Measurement System

---



•  High Accuracy    •  Automatic Alarms    •  Programmable

.

Features:

Temperature and Humidity: Measurement and monitoring of calibration room temperature and humidity.



Accuracy: Temperature resolution of 0.01 °C | 0.01 °F and accuracy of 0.10 °C | 0.18 °F.

Data Logger: Large memory capacity allows recording and storing temperature and humidity data.



Wireless: Bluetooth connection with PC.



Equipment

.
Temperature and Humidity:
The TPH.01 unit is capable of measuring and monitoring the temperature and humidity of the calibration room, as well as any other mission-critical environment, as required by accreditation standards.



With a resolution of 0.01 °C | 0.01 °F and superior accuracy, the unit is suitable for high-level applications as well as monitoring standard working conditions. The unit is equipped with a high-resolution display to show all relevant information.



Thanks to the built-in memory and battery, data is collected 24 hours a day for approximately one

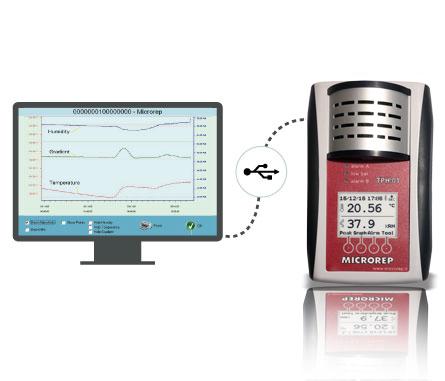

The software enables real-time reading and data manipulation with graphical analysis.



Data Logger:



The TPH.01 unit is programmed through software to record data at a defined frequency.



Thanks to the built-in memory and battery, the unit can operate 24/7, collecting temperature and humidity data even when not connected to a PC.



The large internal memory allows storage of up to 500,000 readings.



When the unit is connected to the PC, the data is synchronized with the software.



The software allows programming of the unit, downloading and manipulating data (graph function available).



Software:
When the unit is connected to the PC, the TPH.01 memory can be downloaded into the software.



All data is stored in the software database and can be used to analyze or display the history of environmental conditions.



Data can be displayed in tables or graphs.



Automatic Alarm:
La unidad TPH.01 se puede programar para mostrar una alarma cuando se excede una condición ambiental específic.



It is possible to define alarms for temperature, humidity, and gradient (temperature drift).



For each alarm, it is also possible to specify a warning limit and a usage limit.



Alarms can be displayed using a flashing LED or buzzer.



In the event of an alarm, the PC can automatically send an email notification.



Custom-Fit Carrying Case:

The TPH.01 is supplied with a custom-fit carrying case to provide protection during delivery, storage, and future transportation.







Specifications:



Resolution:
Temperature       0.01°C | 0.01°F	Humidity 0.1%





Accuracy:
Temperature   0.10°C | 0.18°F	Humidity  4%





Measurement Range:
Temperature       -10÷60°C | 15÷140°F	Humidity  0÷100% (non cond.)
