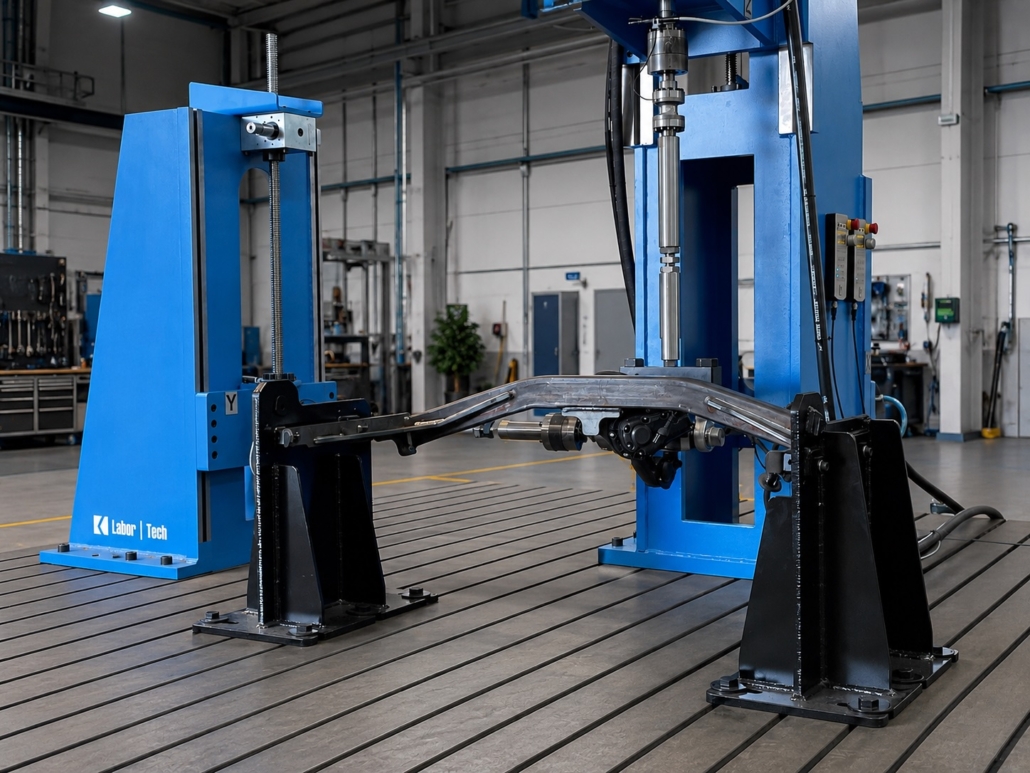

Servo-Hydraulic Test Bench for Automotive Towing Devices LabTest 7.40H.10-TDS

---

As the automotive industry continues to evolve, components must undergo increasingly demanding testing to ensure safety, durability, and long-term performance. Towing devices are subjected to complex multi-directional loads throughout their service life, making it essential to evaluate them using testing systems capable of accurately reproducing real operating conditions.

The LABORTECH LabTest 7.40H.10-TDS is a state-of-the-art servo-hydraulic test bench specifically designed for static, dynamic, and fatigue testing of passenger vehicle towing devices. Combining advanced servo-hydraulic technology with intelligent control software, the system accurately simulates real-world loading conditions, delivering highly reliable, repeatable, and precise test results.



Realistic Simulation of Service Conditions

One of the key advantages of the LabTest 7.40H.10-TDS is its ability to reproduce real vehicle operating conditions within a laboratory environment.

Using CARLOSTest, LABORTECH's proprietary control software, the system converts measurement data collected from vehicles into synchronized loading commands for the X, Y, and Z axes. This enables the accurate reproduction of longitudinal, lateral, and vertical forces acting on towing devices throughout their operational life.

As a result, manufacturers can validate new designs, evaluate fatigue resistance, and optimize product performance before mass production.



High-Performance Servo-Hydraulic Technology

The test bench is equipped with a high-performance hydraulic power unit operating at 280 bar, providing precise force control across all loading axes.

Its synchronized servo-hydraulic actuators apply multiple forces simultaneously, accurately reproducing complex loading scenarios that cannot be achieved with conventional single-axis testing systems.

This capability significantly improves testing accuracy and enables realistic long-term durability and fatigue evaluations.



Rigid Modular T-Slot Test Table

The system is built around a heavy-duty 3 × 4 meter modular T-slot test table, engineered to provide exceptional rigidity during testing.

Its modular design allows quick adaptation to different towing device configurations, fixtures, and loading arrangements while maintaining maximum structural stability throughout multi-axis testing.

The high rigidity minimizes structural deformation, ensuring outstanding measurement accuracy and repeatability.



CARLOSTest Software: Real-World Data Converted into Laboratory Testing

At the core of the system is CARLOSTest, LABORTECH's proprietary software developed specifically for advanced durability testing.

The software converts real vehicle operating data into synchronized laboratory loading sequences, enabling engineers to recreate actual service conditions with remarkable precision.

Its main advantages include:

• Accurate simulation of real operating conditions.
• Fully synchronized control of the X, Y, and Z axes.
• More representative long-term fatigue testing.
• Shorter product development cycles.
• Improved product validation and design optimization.
• Increased reliability and service life of tested components.
•

Key Features

The LABORTECH LabTest 7.40H.10-TDS incorporates advanced technologies to meet the demanding requirements of the automotive industry, including:

• Servo-hydraulic test bench for static, dynamic, and fatigue testing.
• Heavy-duty 3 × 4 m modular T-slot test table.
• High-performance hydraulic power unit with 280 bar operating pressure.
• Fully synchronized loading in the X, Y, and Z axes.
• Proprietary CARLOSTest software developed by LABORTECH.
• Conversion of real vehicle operating data into laboratory test simulations.
• Outstanding measurement accuracy, repeatability, and structural rigidity.
• Flexible configuration for a wide variety of towing device designs.
•

Applications

The LabTest 7.40H.10-TDS is ideally suited for organizations involved in the development, validation, and certification of automotive components, including:

• Automotive manufacturers.
• Towing device manufacturers.
• Research and development (R&D) centers.
• Certification laboratories.
• Testing institutes.
• Automotive suppliers.
•

Benefits for the Automotive Industry

Implementing the LabTest 7.40H.10-TDS provides numerous advantages for manufacturers and testing laboratories:

• Accurate reproduction of real service loads.
• Highly representative fatigue and durability testing.
• Superior measurement accuracy and repeatability.
• Reduced product development time.
• Enhanced component design validation.
• Improved product safety and reliability.
• Compliance with the highest automotive quality standards.
•

An Advanced Solution for Durability Testing

The LABORTECH LabTest 7.40H.10-TDS represents a cutting-edge solution for evaluating automotive towing devices through high-precision servo-hydraulic testing. By combining an exceptionally rigid mechanical structure, synchronized multi-axis loading, and the powerful CARLOSTest software, the system enables manufacturers to reproduce real operating conditions with outstanding accuracy, helping them develop safer, stronger, and more reliable products for the future of mobility.
