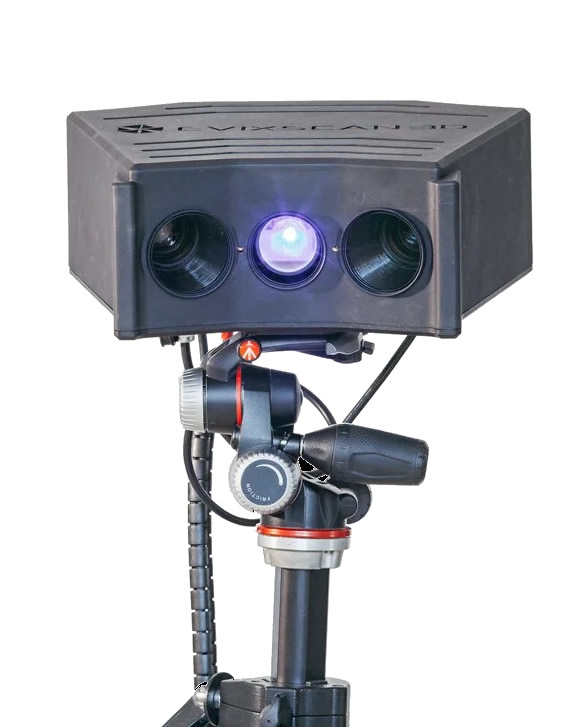

eviXscan 3D FinePrecision – High-Accuracy 3D Scanner

---



The eviXscan 3D FinePrecision scanner incorporates advanced technology to deliver highly accurate measurements in complex applications.

It uses high-speed, next-generation cameras equipped with CMOS sensors and a blue LED light source. This combination ensures highly precise surface reproduction.

Thanks to the CMOS matrix and LED technology, it can scan dark surfaces with an accuracy of up to 0.006 mm and a resolution of 28 µm, meeting VDI/VDE Part 2 precision standards.

.

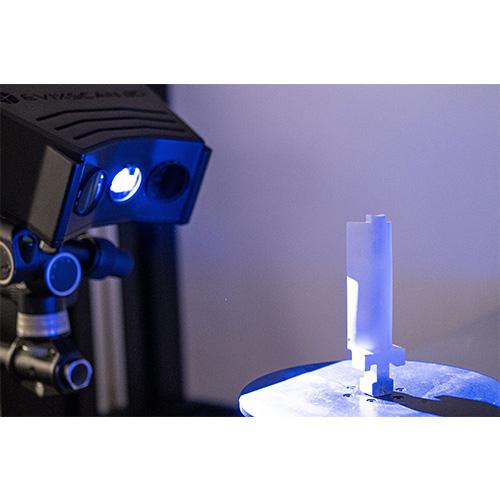

High-precision 3D scanning of small objects.

A perfect tool for precision mechanics laboratories, jewelry, and dentistry.



• Accuracy: < 0.01 mm


• Measurement range: 130 × 90 × 45 mm


• Point density: 1057 pt/mm²


• Scanning time: 5 seconds


• Light source: Blue LED


• Cameras: 2 × 12 MPx


• Software: eviXscan 3D Suite


• Export formats: STL, PLY, OBJ, ASC, BIN


• Computer requirements: Windows 7 (64-bit), 16 GB RAM, Intel i5 CPU


• Computer connection: USB 3.0 and HDMI



It is also especially beneficial in the manufacturing of turbine blades, microcircuits, and small injection-molded parts, as well as components with detailed numerical machining. Its precision makes it invaluable in the medical field for scanning implants and prosthetics, and it is also used in watchmaking and jewelry industries to capture intricate details.
