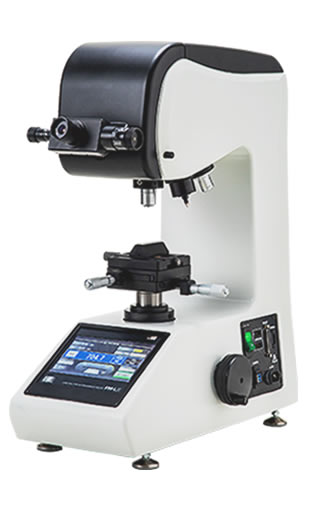

FM-LX Microhardness Testers

---



 .

By adopting a load cell system, multi-step load switching is enabled.

The load switching operation has evolved from a conventional dial to a smooth touchscreen operation.

Any test load can be selected at the time of order (within the minimum to maximum load range).

Equipped with a hardness conversion function, allowing HV measurement results to be simultaneously displayed in other scales on the front panel.



BUILT-IN CAMERA MECHANISM

• Features independently developed automatic indentation with high-performance dedicated software and PC-based measurement.
• When the measurement microscope is removed, the system offers a renewed configuration.

• (R-type with automatic indentation reading function)



LOAD CELL FORCE TESTING

• In addition to the conventional dead weight method, models equipped with load cell-based force application and multi-step load switching achieve high accuracy.

• Supports a wide load range from 50 gf to 10 kgf, suitable for various testing applications. (FM-LX Series)

.

• TILTED TURRET



• The inclined turret design reduces the risk of contact between the sample and the indenter/objective lens during rotation.
• .

INFINITY-CORRECTED OBJECTIVE LENSES

• In addition to the two standard lenses (×10 and ×50), up to five lenses can be installed simultaneously (optional).

• Enables a wide range of observation and measurement, from low to high magnification.

.

DUAL INDENTERS

• Standard: 1 Vickers (HV) indenter

• Optional: Vickers (HV) / Knoop (HK) / Brinell (HB)

• Up to two different indenters can be installed simultaneously.

.

CAPACITIVE TOUCH PANEL

• The main display screen can be changed with a simple swipe.

• The capacitive touchscreen ensures smooth and responsive operation.

• Measured data can be directly transferred to a PC via the main unit output port, eliminating operator recording errors.









---
