Door Gap Measurement in Body Shop Areas

---



It is no longer necessary to calibrate gauges, clay, feeler gauges, or thumb screws to eliminate gaps between the door and the body opening flange, or between the deck lid and the body opening flange.

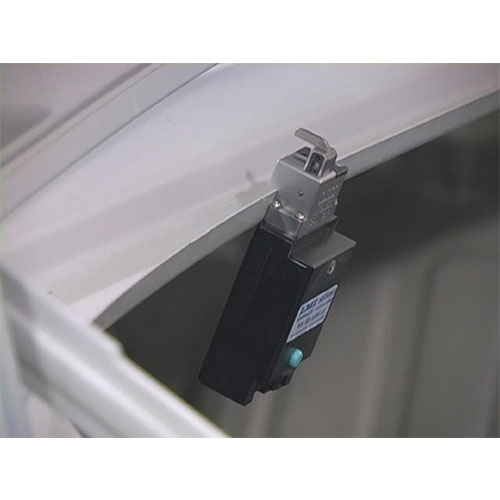

To inspect a vehicle, simply place the Hub inside the vehicle, attach the 237W or 238W seal gap gauge(s) to the flange. Then apply the door magnets to “flush” the door or deck lid and take readings. The data is stored in a convenient file format for use in your SPC software.



System Features:



Repeatable measurement using a wide variety of LMI tools for doors, deck lids, and liftgates, such as LMI MINI Seal Gap gauges. Custom gauges are always possible.



The robust construction of the gauges and hub, combined with solid-state RF technology, makes the system highly durable and reliable.



The system is flexible and can be used in many areas, including prototype build, wind tunnel testing, body shop operations, and final assembly evaluation.



Software Features:



• View and sample live readings on a colorful graphical display for part quality verification.
• UGI graphs allow users to configure multi-part or single-part charts per component.
• Global import and export functions are now integrated into UGI to better track and organize collected data.
