Series R04 Miniature Force Sensors (Tension and Compression)



---

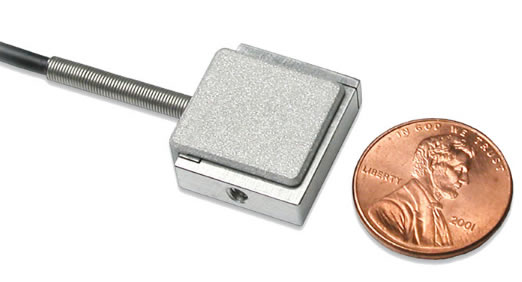

The Mark-10 R04 Series is an extremely compact smart force sensor designed to measure both tensile (tension) and compression forces in applications where space is limited.



Its miniature design and Plug & Test® system make it ideal for testing environments with restricted installation space.



The sensor is available in capacities ranging from 0.25 to 100 lbF (1 to 500 N) while maintaining the same compact dimensions across all capacities.



It includes a NIST-traceable calibration certificate and offers excellent versatility through threaded holes that accommodate hooks, fixtures, and accessories.



The R04 is compatible with Mark-10 indicators (M3i, M5i, and M7i, sold separately).



FEATURES:

• Force sensor for tension and compression testing.
• Ultra-compact (miniature) design, ideal for confined spaces.
• Measurement capacities from 0.25 to 100 lbF (1 to 500 N).
• High accuracy: ±0.2% of full scale (plus indicator).
• Mechanical overload protection.
• Threaded holes on both ends for mounting hooks, fixtures, and accessories.
• Compatible with Mark-10 indicators through Plug & Test® technology, allowing easy sensor interchangeability without recalibration.
• Includes a NIST-traceable calibration certificate.
• Extremely lightweight: approximately 0.015 lb (0.007 kg).
• 3-year warranty.







---
