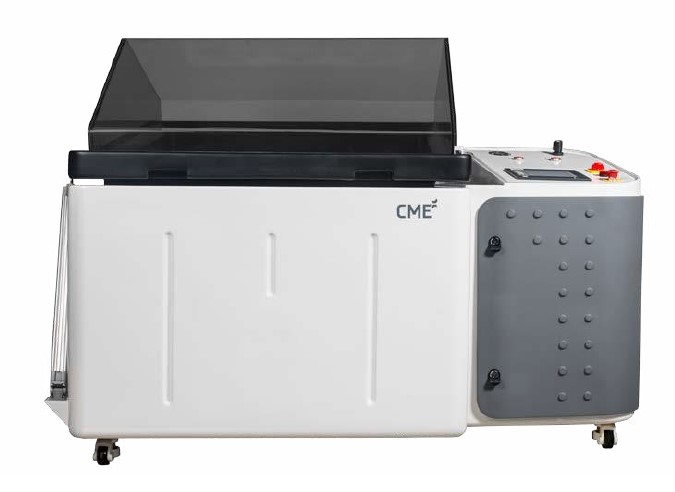

Salt Spray Corrosion Test Chambers

.

The SF series of salt spray corrosion test chambers by North American Envirosystems deliver high-reliability environmental testing built to withstand rigorous international standards (such as ASTM, ISO, MIL-STD, DIN, and automotive standards). Designed with a non-metallic, molded Fiber Reinforced Plastic (FRP) body, these chambers provide non-corrosive, long-life performance with advanced automation.

Key Models & Technical Specifications

Standard Salt Spray & Cyclic Models (SF / SF-CCT Series)

SF-450 / SF-CCT-VL:
- Test Space Volume (with hood): 868 L / 30.6 cu. ft. (800 x 730 x 1300 mm)
- Test Space Volume (without hood): 519 L / 18.3 cu. ft. (850 x 730 x 820 mm)
SF-1000 / SF-CCT-VH:
- Test Space Volume (with hood): 1,678 L / 59.2 cu. ft. (1680 x 800 x 1400 mm)
- Test Space Volume (without hood): 951 L / 33.6 cu. ft. (1680 x 800 x 890 mm)
Operating Temperature: Ambient + 5 °C to 55 °C (Salt Spray) / Ambient to 70 °C (Cyclic)
Humidity Range (Cyclic Models): 25% to 98% RH (± 3% RH fluctuation)
Fog Fall-Out Rate: 0.5 to 2.5 ml / 80 cm² / h
Load Bearing Capacity: 200 kg to 250 kg UDL

Construction & Core Hardware Features

Non-Metallic Structure: Molded Fiber Reinforced Plastic (FRP) body coated with PU-based paints for full corrosion protection.
Tapered Hood: Non-metallic hood prevents condensation drops from falling directly onto test specimens.
Water Seal Channel: Ensures fog does not escape into the laboratory environment.
Pneumatic Door Operation: Assisted hood movement for safe and easy access.
Atomizer Tower: Acrylic atomizer producing < 500 micron droplets for uniform fog delivery.
External Solution Tank: 50 L solution tank equipped with lid and filter for easy preparation and cleaning.
Levelling Casters: Heavy-duty anti-vibration casters for effortless mobility and levelling.
Isolated Electrical Panel: Fully isolated control housing to shield electronics from corrosive fog and moisture.

Control Platform & Automation

Interface: 5.7" or 7" TFT color touch screen with integrated PLC.
Programmer: Supports continuous 12-step test programming for complex cycle standards.
Connectivity: Ethernet and USB ports for real-time monitoring and downloading test data (graphical and tabular).
Security & Diagnostics: 3-tier user security (User, Admin, Factory) and automated preventive maintenance notifications.
Safety Alarms: Comprehensive monitoring for solution level, saturator water level, humidity tank, air pressure, and zone temperatures.

Optional Accessories

SF-001 Oil-Free Air Compressor: 0.75 HP low-noise compressor with 25 L air receiver.
SF-002 Water De-Ionizer: Continuous demineralized water supply for testing purity.
SF-003 Immersion Cycle Unit: Pre-heated 600 L reservoir for liquid immersion testing.
SF-004 Spray Header Cycle: High-capacity centrifugal pump feeding adjustable spray nozzles.
SF-008 Access Port: 125 mm silicone port with insulated plug for external cabling/sensors.
SF-011 SO2 Gas Dosing: Precision metering system for 35 cm³/minute/m³ SO2 gas introduction.
SF-012 Remote Conditioning Unit (RCU): Sub-ambient testing extension down to -20 °C.
