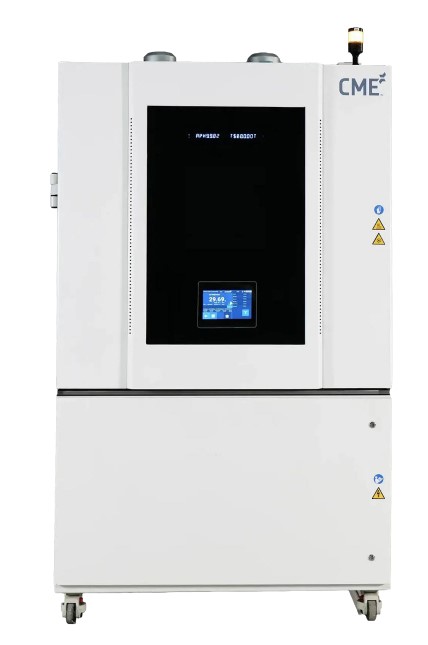

Reach-In Environmental Test Chamber

.

The PAC series of climatic chambers by North American Envirosystems offers high-quality solutions for cyclic low/high temperature and humidity testing.

Models & Technical Specifications

Volume Options:
- PAC 120: 120 L / 4.2 cu. ft.
- PAC 380: 380 L / 13.4 cu. ft.
- PAC 1000: 1,000 L / 35.0 cu. ft.
Temperature Ranges:
- Range A: -40 °C to +180 °C (-40 °F to +356 °F)
Ramp Rates:
- Standard rates: 3, 5, 6, 8, 10, 12, 15, 20, 25 °C/min according to IEC 60068-3-5 (customized ramp rates available).
- Heavy-Duty Door Latch: Ensures airtight sealing and operational safety.
- Stainless Steel Interior: Corrosion-resistant and easy to clean.
- Digital Display & Controller: Real-time monitoring with advanced programmable cycle management.

enviCoM 4.0 Control Platform & Architecture
- System Performance: Operates on Linux RT OS with JMobile software and CODESYS V3 with Ethernet I/O stacks for rapid boot-up and operation.
- Connectivity & Hardware Ports:
  - 3 Ethernet ports for independent IP networks.
  - 1 Serial port (RS-232, RS-485, RS-422 configurable; expandable up to 3).
- Certifications: Certified for IECEx, ATEX, DNV-GL, UL Ordinary, and Class 1 Div 2 hazardous environments.
- Remote Support & Diagnostics: Real-time remote tracking, control, and troubleshooting via JMobile Client, JM4Web, and VNC Client.
