Dynamic and Fatigue Testing Machines - LaborTech



cad



LABORTECH’s Dynamic and Fatigue Testing Machines are engineered to meet the most demanding requirements in material and component testing. Designed for high precision, durability, and versatility, these systems enable accurate simulation of real-world loading conditions, whether for low or high cycle fatigue, crack propagation, or dynamic tensile/compression testing. With advanced control software, modular configurations, and compliance with international standards such as ASTM and ISO, LABORTECH provides cutting-edge solutions for industries including aerospace, automotive, biomedical, and construction. Whether servohydraulic, electromechanical, biaxial, or horizontal systems, LABORTECH ensures reliable, efficient, and repeatable test results every time.























We Offer The Folowing:

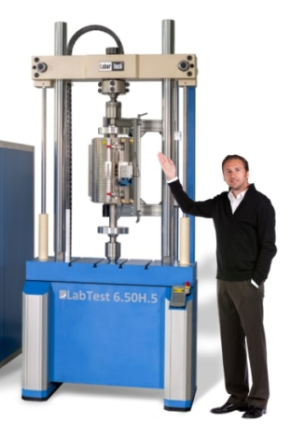

Servohydraulic Testing Machines 00 SeriesZephyr III - Escáner Láser



The LABORTECH 00 Series Servohydraulic Testing Machines are engineered for high-precision material testing with load capacities up to ± 2,000 kN. Designed for demanding static and dynamic applications, they offer exceptional accuracy with up to ± 250,000 signal divisions and 10 kHz real-time data acquisition. With advanced servo control and compliance with EN ISO 7500-1 and ASTM E4, the 00 Series ensures reliable results in fatigue, fracture, and crack propagation testing....


contactarnos





Solano blue - Escáner Láser

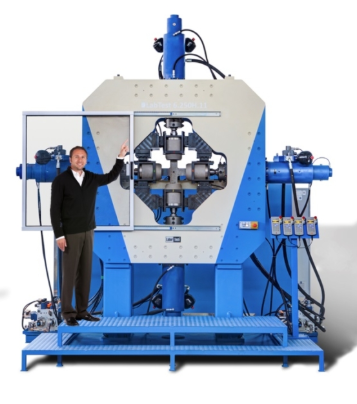

   BiAxial Servo Hydraulic Dynamic Testing Machines up to 250 kN

    The LABORTECH H.11 Series BiAxial Servo Hydraulic Testing Machines offer precise fatigue and fracture testing           with dynamic loads up to 250 kN and frequencies up to 50 Hz. Featuring high frame rigidity, dual-axis servo control,      and ± 250,000 signal divisions with 10 kHz sampling, they ensure accurate, real-time results. Ideal for advanced            material testing in compliance with EN ISO 7500-1 and ASTM E4 standards..



     contactarnos




Solano blue - Escáner Láser

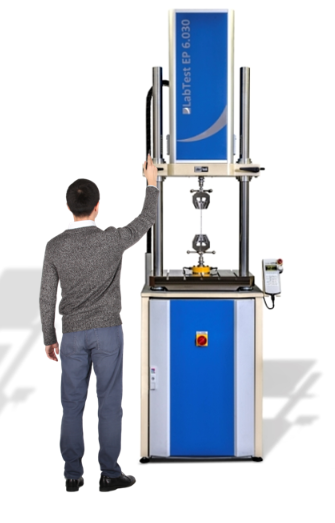

Electromechanical Dynamic Testing Machines



The LABORTECH EP Series Electromechanical Dynamic Testing Machines are designed for precise, oil-free fatigue testing with frequencies up to 200 Hz. Powered by a high-performance linear motor with digital feedback and active cooling, they provide quiet, efficient operation ideal for plastics, aerospace, and medical applications. The system features a rigid vertical frame with an integrated T-slot base absorbing up to 95% of vibrations, and supports test loads with high repeatability. Fully compliant with standards such as ASTM E466, E606, and ISO 12106, the EP Series ensures reliable results with 10 kHz data sampling, and is controlled via DYNPACK software for dynamic and static testing flexibility...



contactarnos





Solano blue - Escáner Láser

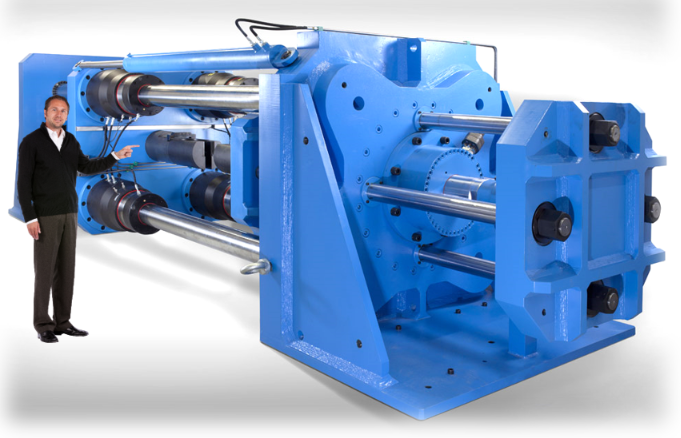

Horizontal Dynamic Testing Machines up to 10 MN



LABORTECH’s H.6 Series Horizontal Dynamic Testing Machines are built for high-force applications, offering dynamic load capacities up to 10 MN. Designed for testing high-strength materials like construction ropes and chains, they feature a high-rigidity frame, adjustable clamping lengths, and servo-hydraulic cylinders controlled via HALT 18 diagnostics on SIEMENS touchscreen. With real-time data acquisition at 10 kHz, compatibility with extensometers and external sensors, and compliance with standards like ASTM E1012, these machines ensure accurate, repeatable results in demanding dynamic test environments...



contactarnos
