Built to the Standards That Drive the Industry

---

.

📘 General Description



The CCT-NC Series is designed to perform accelerated corrosion testing under controlled conditions, complying with advanced test methods used by manufacturers such as Ford, Volvo, Toyota, and Honda. Its modular design allows functions and capabilities to be added or upgraded according to laboratory requirements.



Each chamber is engineered to reproduce the most demanding automotive and industrial environments while fully complying with global standards such as:



• ASTM G85 (Annex A5, Prohesion)
• GMW 14872
• Ford CETP 00.00-L-467
• SAE J2334
• Toyota TSH1555G
• ISO 16701 and ISO 14993
• Volkswagen PV 1210
• Volvo VCS 1027
• And many more

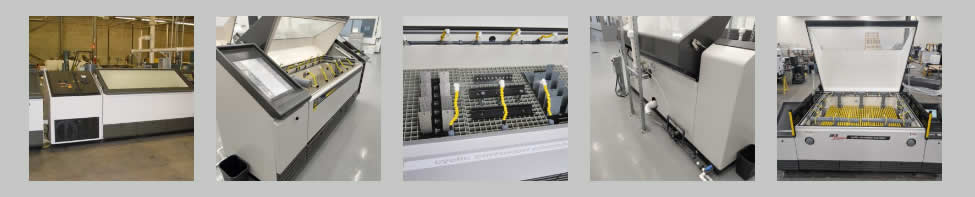

Whether validating coatings, fasteners, or components, Auto Technology’s Cyclic Corrosion Test Chamber provides repeatable, traceable, and certifiable testing conditions—the same chambers used in our own A2LA-accredited corrosion testing laboratory.





🧩 Standard Salt Spray Testing Equipment

The CCT (Cyclic Corrosion Test Chamber) salt spray cabinet is the foundational testing system that has served the corrosion testing community for more than 50 years. Its simple and reliable design supports traditional testing specifications such as ASTM B117, MIL-STD-883, ASTM G85 A1 (Acetic Acid), ASTM B368 (CASS), MIL-STD-810D, and many others...





🧩 Multipurpose Salt Spray Testing Equipment

The Multipurpose Fog Chamber (MPF) is designed to meet automotive accelerated corrosion testing specifications that include salt fog, humidity, acetic acid, CASS, and simple cyclic testing such as ASTM G85 Annex 5...



🧩 Cyclic Salt Corrosion Testing Equipment

The Auto Technology Cyclic Corrosion Chamber is one of the most sophisticated and advanced cyclic corrosion systems available. Utilizing advanced software for unmatched data acquisition and control, the CCT is capable of performing all major corrosion standards, including SAE J2334, GM9540P, ASTM B117, and many others...





🔧 General Features

• Modular Design

• Allows additional functions and upgrades without replacing the entire chamber.
• Easy maintenance and component accessibility.



• Available Test Modes

Includes fully automatic cycles designed to reproduce realistic corrosion environments:



• Salt Fog
• Prohesion Cycle
• Condensation / Humidity
• Air Drying
• Dry-Off Cycle
• Ambient Drying
• Programmable temperature and humidity ramps
• Automotive-specific cycles for Ford, GM, Honda, Toyota, and Volvo



• Intelligent Controller

• Digital touchscreen controller
• Records and stores all test data
• Custom or pre-programmed cycle configuration
• Integrated data logging
• USB port and data transfer capability



• Construction and Materials

• Corrosion-resistant chamber construction
• High-uniformity salt spray atomization system
• Integrated solution reservoirs



• Safety Features

• Over-temperature protection
• Visual and audible alarms
• Automatic shutdown in the event of system failure







📏 Key Product Features



Feature	Benefit
True Multi-Cycle Control	Simulates salt spray, humidity, drying, ambient temperature, and temperature ramps within a single programmable system.
Mechanical Refrigeration*	Enables testing down to -30°C and provides rapid transitions between temperature and humidity phases.
Controlled Relative Humidity (RH)*	Maintains precise humidity levels for ISO 16701, GMW 14872, and Volvo CCT protocols.
Oscillating Spray Bars*	Provides uniform salt solution impact for Ford L-467 and Volvo-specific testing.
Automated Pneumatic Lifts*	Allows smooth, hands-free lid operation for environmental cycling and operator safety.
Multiple Mixing Tanks*	Supports multiple test solutions or extended-duration testing without refilling.
Immersion Capability*	Enables cyclic immersion testing for advanced corrosion fatigue and paint creep evaluations.
Immersion Capability*	Provides direct high-velocity spraying for specialized coating and fastener testing.
Temperature Ramp Function	Simulates natural environmental transitions with precise programmable control.
Computer or PC Controls*	Offers intuitive touchscreen and PC-based programming with complete data logging and traceability.
LN₂ Package*	Enables rapid cooling transitions and low-temperature conditioning using liquid nitrogen.
SO₂ Package*	Introduces controlled sulfur dioxide for specialized automotive and coating industry testing.
Solution Recirculation System*	Reduces solution waste and maintains consistent salt concentration during long-duration tests.
Recirculation Scrubbers* and Forced Ventilation*	Improves chamber airflow and fog evacuation, ensuring uniform conditions and faster cycles.
U.S.-Built Reliability	Manufactured and calibrated in Ohio for dependable performance and rapid support.
Global Support Network	Worldwide availability of parts, calibration, and technical assistance.
12-Month Warranty	Comprehensive warranty backed by experienced service engineers.
Data Logging* and Audit Traceability	Simplifies compliance documentation through automatic logging of temperature, humidity, and spray-cycle data.

* Optional custom feature.

🔍 Full Range of Configurations

Available in capacities from 20 to 112 ft³, as well as custom walk-in chambers, with options including:

• Mechanical refrigeration (down to -30°C / -22°F)
• Controlled relative humidity
• Immersion and impact testing packages
• Automated pneumatic covers
• Solution recirculation and mixing systems
• LN₂ and SO₂ additive packages for specialized environments



Compatible, Calibratable, and Traceable

• Designed and manufactured in the USA to fully comply with ASTM, ISO, SAE, and OEM specifications.
• Compatible with ATC’s internal A2LA calibration and proficiency testing programs.
• Trusted by the same engineers who help define the standards followed throughout the industry.



Common Applications

• • Automotive coating and fastener validation
  • Paint, e-coat, and pretreatment evaluation
  • Aerospace and marine component testing
  • OEM and Tier 1 supplier qualification
  • Laboratory proficiency testing





---
