Assistent - Layout Coordinate Measuring Machines

Manual Measuring and Layout Machine

---

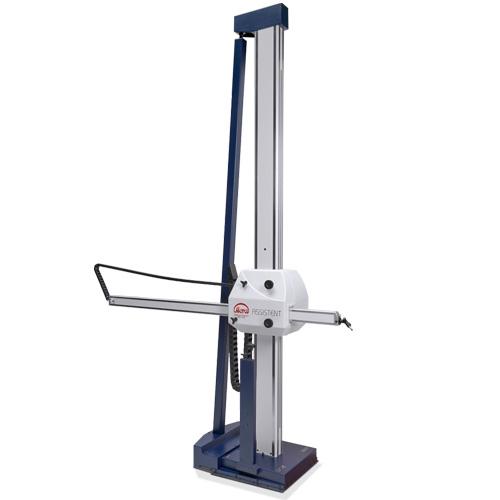

MORA Assistent, layout coordinate measuring machine. Assistent is a precise manual measuring and layout machine, ideal for dimensional inspection, part verification, and metrology tasks requiring a wide measuring range and maximum accuracy.



The MORA Assistent is a manual measuring and layout machine designed to perform dimensional inspection and part control tasks with high precision.
Its stable and modular structure allows smooth operation across large measuring ranges thanks to its precision roller-bearing guide system.
It incorporates high-resolution scales on all axes, delivering exact measurement values and ensuring reliable results.



Its ergonomic design makes operation easy and turns it into the ideal solution for a wide variety of measuring tasks, whether using a digital readout for layout marking or a probe system with electronic evaluation.

.

Due to its lightweight construction and ergonomic handling, our Assistent is the ideal companion for workshop operation, especially for manual measuring or marking tasks.



The precision-guided roller bearing systems always ensure accurate measuring results and exact marking operations.



Upgrading the Assistent from a layout machine with digital readout to a universal measuring machine with INCA 3D software evaluation can be done without any problem.





Measurement Ranges and Accuracy

Axis	X / Length	Y / Width	Z / Height
From	1200	800	1000
Up to	cualquier	2500	3000



Accuracy: 16 + 1/100

The stated accuracy is valid for the smallest measuring range and for an ambient temperature of 20 °C. Special sizes and special accuracies are available upon request.



Probe Systems

The Assistent is compatible with various probe systems:

• PH6 fixed probe head
• PH10T motorized indexing probe head
• PH10M motorized indexing probe head
• TP20 probe system
• TP200 probe system
• Alternative probe systems available upon request
• 3D optical sensors available upon request



Options

• Active pneumatic vibration isolation
• Active temperature compensation on all axes, including the workpiece



Software

• Inca3D software options
