ITD Series Impact Testers
Charpy Impact Pendulums - Izod Computerized, Wireless and Touchscreen
.
Precision, technology, and total control in every impact test
🧪 General Description
The ITD Series Impact Testers are designed to perform Charpy and Izod tests on metallic and plastic materials with high impact energy and extreme precision.
They feature a robust design, high-resolution electronic measurement system, and a digital control system that ensures repeatability, safety, and accuracy in every test.
Their structure allows testing of a wide range of materials under controlled conditions in compliance with international standards.

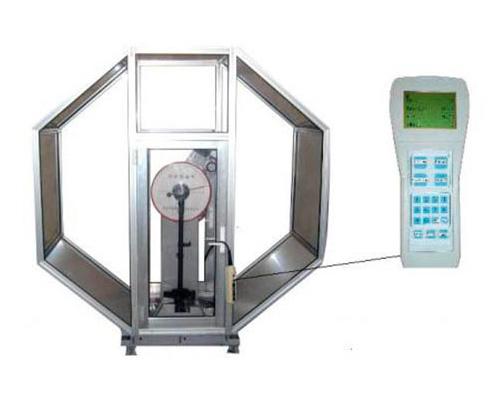

The ITD series impact testers provide digital test result readings through a remote LCD display. In this model, the pendulum is automatically raised and released.
⚙️ Main Features
- Energy capacity: up to 750 J, depending on configuration.
- Test type: Charpy and Izod (with quick accessory change system).
- Control system: automated PC-based system with ImpactStar software.
- Measurement system: high-precision optical encoder.
- Operating modes: manual, semi-automatic, or fully automatic.
- Interface: LCD touchscreen or PC control.
- Construction: high-rigidity steel frame with excellent stability and low vibration levels.
- Standards compliance: ASTM E23, ISO 148, EN 10045, DIN 50115, and GOST 9454.
🧩 Standard Accessories for the 750 J Model
- ImpactStar software with PC and digital interface.
- 300 J, 500 J, and 750 J hammers.
- Interchangeable grips (V and U types).
- Specimen support and centering system.
- Automatic pendulum release device.
- Tool kit and anchor bolts.
- Safety guard with electromagnetic locking system.
🧱 Advantages
- High precision and repeatability in impact testing.
- Full parameter control through software.
- Ergonomic and safe design for the operator.
- Automatic recording of absorbed energy and impact curves.
- Ideal for quality control laboratories, universities, and research institutes.
(Agrandar)¿Qué es un Probador de Impacto de Caída Libre? Un Probador de Impacto de Caída Libre es un equipo diseñado para evaluar la resistencia al impacto o choque de materiales, componentes o productos terminados dejando caer una masa o peso desde una altura determinada sobre una muestra.
A diferencia del péndulo de impacto (Charpy o Izod), que usa un brazo oscilante, este sistema libera un impactador verticalmente, simulando caídas o golpes directos que ocurren en condiciones reales de uso o transporte.
Tipos de equipos: Manual: caída libre controlada con altura fija. Electroneumático o motorizado: control de altura, energía y repetición. Computarizado (como la Serie DT de PTS): incluye software para registrar velocidad, energía, fuerza, aceleración y curva de impacto.
Cumple con normas internacionales como ASTM D5420, ISO 6603, ISO 7765, DIN 53443, dependiendo del tipo de material y prueba.
