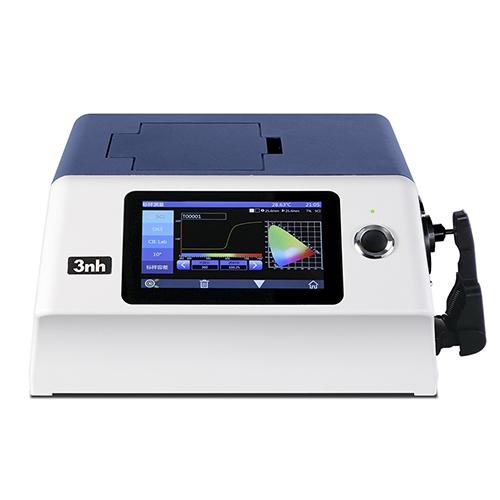

YS6060 - Benchtop Grating Spectrophotometer

---

The YS6060 is a benchtop diffraction spectrophotometer independently developed by 3nh, with proprietary intellectual property rights.



It features a 7-inch TFT capacitive touchscreen, full-spectrum illuminants, and advanced optical geometries including D/8 reflectance geometry and D/0 transmission geometry (with UV inclusion or exclusion options).



With highly stable and accurate color measurement performance, large data storage capacity, and powerful PC software, the YS6060 is ideally suited for color analysis in R&D and laboratory environments.



Key Features



Superior Optical Geometry

The instrument uses D/8 reflectance geometry (diffuse illumination, 8° viewing angle), fully compliant with CIE No.15, ISO 7724/1, and ASTM E1164 standards.



Multiple Measurement Apertures

Equipped with interchangeable apertures to accommodate different sample types:

• Φ25.4 mm
• Φ15 mm
• Φ8 mm
• Φ4 mm
• Φ3 mm



Reflectance and Transmittance Measurement

Supports high-precision measurement of:

• SCI/SCE reflectance
• Specular and diffuse transmittance



Extended Spectral Range

Operates within a wavelength range of 360–780 nm, enabling detailed spectral reflectance and transmittance analysis.



Dual CMOS Sensor Array

Uses 256-element CMOS image sensors, ensuring high sensitivity, stability, and measurement accuracy.



7-Inch Touchscreen Interface

Intuitive capacitive touchscreen for easy operation and clear visualization of color data and graphs.



UV Light Source

Integrated UV illumination for accurate measurement of fluorescent materials and UV-sensitive colors.



Large Data Storage Capacity

• 5,000 standard records
• Up to 40,000 sample records



Camera Positioning System

Real-time sample positioning for precise and repeatable measurement alignment.







---
