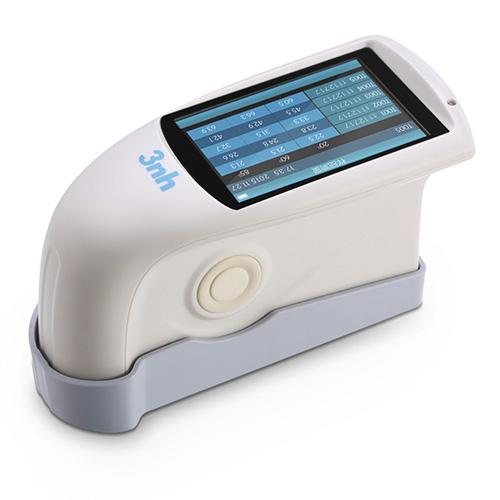

NHG268 - 20/60/85 Degree Gloss Meter

---



The NHG268 Gloss Meter features 20°, 60°, and 85° measurement angles and is manufactured in accordance with ISO 2813 and GB/T 9754 standards.



It is also compliant with ASTM D523 and ASTM D2457 standards. The NHG268 meets the requirements of JJG696 First-Class Gloss Meters, corresponding to CIE 1931 (2° Observer) under the CIE C light source.



The NHG268 is capable of measuring high-gloss materials from 0 to 2000 GU (Gloss Units) and is widely used for gloss measurement and data transmission in industries such as paints, inks, baking varnishes, coatings, wood products, marble, granite, polished vitrified tiles, ceramic bricks, porcelain, plastics, paper, and hardware manufacturing.



Features

• 3.5-Inch Touchscreen Display: Equipped with a large capacitive touchscreen for intuitive navigation through shortcut menus and quick access to measurement functions.
• Multi-Angle Measurement: Simultaneously measures gloss at the three standard angles of 20°, 60°, and 85°, allowing real-time comparison of results across different surface finishes.
• High Accuracy: Complies with the first-grade accuracy requirements specified in the JJG696 standard.
• Wide Measurement Range:
  • 0–2000 GU at 20°
  • 0–1000 GU at 60°
  • 0–160 GU at 85°
• Multiple Operating Modes: Includes Basic, Statistical, and Continuous modes to meet a variety of industrial inspection and quality control requirements.
• Large Data Storage Capacity: Stores up to 1,000 records in Basic Mode and up to 5,000 records in Statistical and Continuous Modes.
• Long-Life Battery: Powered by a 3200 mAh Li-ion battery, capable of performing more than 10,000 measurements per charge.
• Connectivity and Software: Features a USB interface and is fully compatible with GQC6 software for quality management, data analysis, and professional report generation.







---
