Dynamic 9D LADAR is a breakthrough technology, representing the fastest, most accurate non-contact measurement system in the world. 9D LADAR’s rapid, accurate data collection in real-time is set to revolutionize automated in-line production measurements and obsolete exiting conventional Laser Radar systems that require large sample averaging to obtain reasonable accuracy, effectively slowing data acquisition rates. |
DESIGNED FOR DURABILITY
API’s compact and rigid UNIBODY tracker design allows for shaft mounted motors, encoders and laser. The UNIBODY shaft mounted laser innovation minimizes Abbe offset errors, while also housing laser source, optics, camera and major head electronics in the center of the tracker body.
QUICK & EFFICIENT WARM-UP TIME
The UNIBODY, and the centering of all heat sources, allows rapid distribution of heat throughout the body during warm-up or drastic ambient temperature variations’ ensuring the tracker body maintains constant heat equilibrium throughout its operation resulting in shorter warm-up time and superior measurement stability.
BREAKTHROUGH TECHNOLOGY
9D LADAR is a breakthrough technology, set to revolutionize automated production measurement. The patent-pending 9D LADAR is the fastest, most accurate interferometry-based non-contact measurement system incorporating Optical Frequency Chirping Interferometry (OFCI) technology.
Laser Detection and Ranging

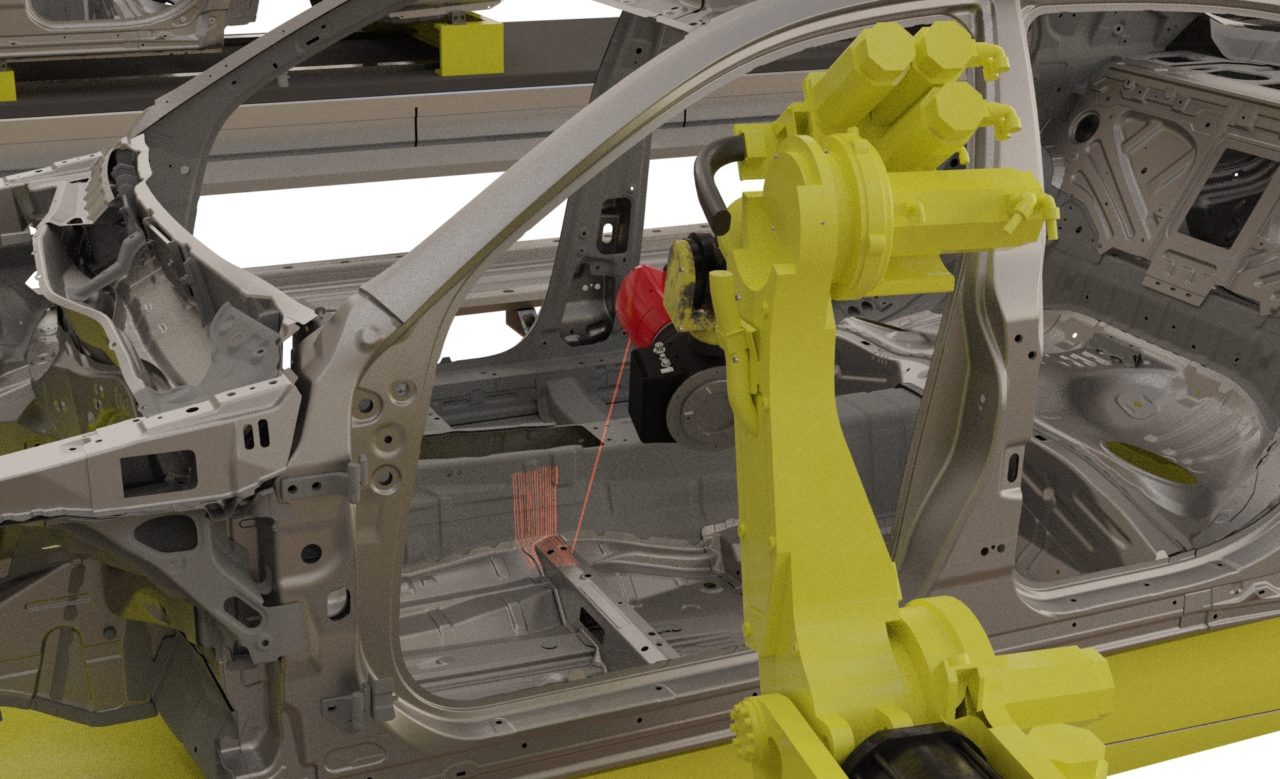

9D LADAR captures both dimensional and surface geometry data targeting all manufacturing industries including but not limited to; automotive, aerospace, ship building, energy, transportation, machine tool, robotics and construction.
The Fastest, Most Accurate
Interferometry-Based Non-Contact Measurement System in the World
RANGE
25M
SCANNING SPEED
0.2 SEC/CM²
HIGH-DENSITY SCANNING
50 LINES/SEC
QUICK WARMUP
20 MIN
IN WEIGHT
11KG
ACCURACY
20 μm + 6
ppm (2 sigma)
