PTS Charpy, Izod Pendulum Impact Testers

alta capacidad The Physical Test Solutions IT Series of impact testers offers turn – key solution packages that include the basic accessories to get started right away. No need to decipher what hammers, tools, and other “recommended” accessories have to be ordered, PTS has it all included! Furthermore, PTS low capacity impact testers offer automatic release mechanism. All PTS impact testers are manufactured in an ISO 9001 certified facility. There are three types of pendulum impact tests; Izod, Charpy and Tensile Impact. The first two are the most common. As a practical guideline, Izod tests are most used in low energy applications for plastics and non-metallic materials, whereas Charpy tests are usually seen in high energy tests in metallic materials.

We Offer the Following:

High Capacity Charpy Pendulum Impact Testers

High capacity impact testers are used to determine the impact characteristics of metals having two main devices, the hammer and Charpy or Izod testing tools...

Low Capacity Charpy Pendulum Impact Testers

The IT series of low impact capacity testers are used to determine the impact toughness of plastic, steel, glass, plastic pipes, strong nylon, ceramic and electrical insulating materials...

Pendulum Impact Tester <---

Pendulum Impact Tester for plastics 2J - 50J

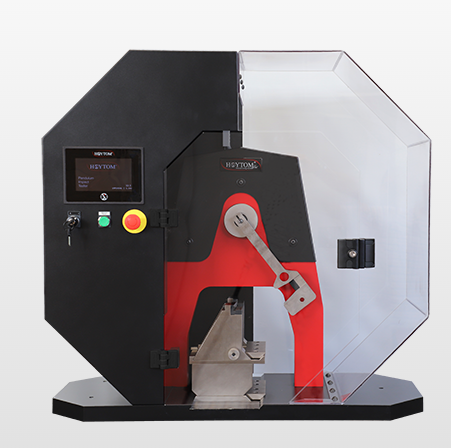

Hoytom's benchtop impact pendulum is designed to perform tests on plastics and composites according to Charpy or Izod standards. It is available in capacities from 2 to 50J. It is operated from a touch screen that is simple and intuitive to use. Its octagonal protection has a polycarbonate door, which complies with the CE marking and the EN ISO 13802 standard.

Available capacities: ISO 2, 4, 5, 7.5, 15, 25, 50 / ASTM 2.7, 5.4, 10.8, 21.6, 50 / IZOD 2.75, 5.5, 11, 22

Fully automatic

Allows quick test cycles

Electromagnetic brake that allows the hammer to be thrown safely

Lifting of the motorized hammer with automatic return after each test, providing greater productivity and safety in its use

Automatic test start when closing the protection door

Manufactured with rigid components and low friction in their movements

Data acquisition software to connect the machine with a PC

Easy use via touch screen Impact blades

Charpy according to ASTM or ISO

Languages: English, Spanish, French and German

In the pop up window you can download the Catalog (if it is not shown, please refresh or click F5)

Pendulum Impact Tester <---

Pendulum Impact Tester for metals 350J - 700J

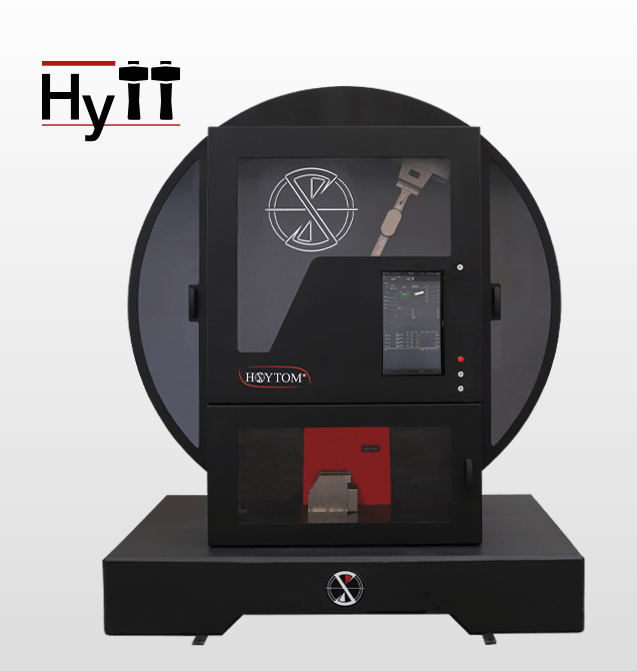

The Hoytom HyTT impact pendulum is designed to perform tests on metals according to Charpy or Izod standards. It is available in capacities from 300 to 750J. It performs tests automatically, and is operated from a touch screen that is simple and intuitive to use. Its protection has a sliding polycarbonate door with electric interlock, which complies with the CE marking and the ISO 13849 standard.

Available capacities: 300, 450 and 750 Joules

Fully automatic

Allows quick test cycles

Electromagnetic brake that allows the hammer to be thrown safely

Lifting of the motorized hammer with automatic return after each test, providing greater productivity and safety in its use

Automatic test start when closing the polycarbonate protection door

Manufactured with rigid components and low friction in their movements

Impact blades

Charpy according to ASTM and ISO

Self-centering clamps to place the specimens (According to ISO 148-1 and ASTM E23)

Foundation base according to EN ISO148-2 and ASTM E23

Pendulum geometric characteristics verification template (According to ISO 148-2)

HoyWin® software in multiple languages

21.5” touch screen

Computer integrated into the machine

In the pop up window you can download the Catalog (if it is not shown, please refresh or click F5)

Pendulum Impact Tester <---

Pendulum Impact Tester for plastic 2J - 25J

Hoytom's benchtop impact pendulum is designed to perform tests on plastics and composites according to Charpy or Izod standards. It is available in capacities from 2 to 25J. It is operated from a touch screen that is simple and intuitive to use. Its octagonal protection has a polycarbonate door, which complies with the CE marking and the EN ISO 13802 standard.

Available capacities: ISO 2, 4, 5, 7.5, 15, 25 / ASTM 2.7, 5.4, 10.8, 21.6 / IZOD 2.75, 5.5, 11, 22

Automatic brake

Automatic test start when closing the polycarbonate protection door

Easy use via touch screen

Charpy impact blades according to ASTM or ISO

In the pop up window you can download the Catalog (if it is not shown, please refresh or click F5)

High Capacity Impact Testers, for plastic material applications, like metalic materials, standard ranges in plastic materials from 5 to 50 Joules, Izod and Charpy methods.
