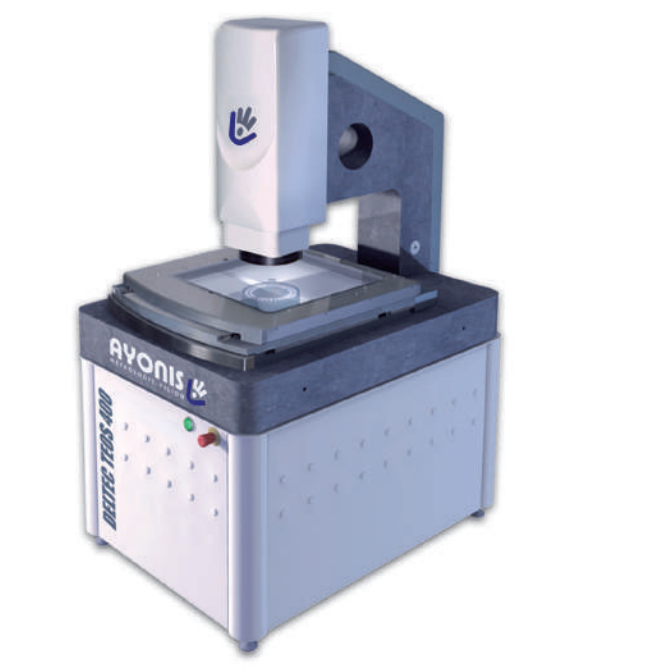

DELTEC TEOS - Standard 3D CMM

---

This machine combines all the tools required for your dimensional metrology needs (software package and 3D structure).



Compatible with all types of parts (automotive, mechanical, electronics, pharmaceutical, etc.) and materials (metal, plastic, rubber, glass, etc.).



Suitable for all types of inspections: first article, in-process, laboratory, incoming, outgoing, and during production.



Ability to manage multiple sensors: vision, probe, confocal.



Automatic inspection of single or multiple parts.





Machine Characteristics

• Granite monoblock column-type structure

• XY stage with cross-motion and open frame design

• Crossed roller guides

• Measurement capacities (X, Y, Z): 400 x 400 x 200 mm

• Load capacity: 20 kg

• Encoder resolution: 0.5 microns

• X, Y, Z speed: up to 75 m/s max



Measurement Uncertainties (2σ)

• XY E2: (± 2.5 + 5L/1000) microns (vision, probe)

• Z E1: (± 4 + 5L/1000) microns (vision)

• Z E1: (± 2.4 + 5L/1000) microns (probe)



•

 Vision System:



• 1.3 MPX high-definition black & white digital camera

• Programmable lighting systems:
• 8-sector episcopic white LED
• Collimated green diascopic LED
• Motorized zoom with 6 indexed positions
  Second wide-field camera for automatic multi-part inspection
  Simplified positioning via laser pointer
  Magnifications x30 to x200 (reference full-field display on a 22” screen)
•







---
