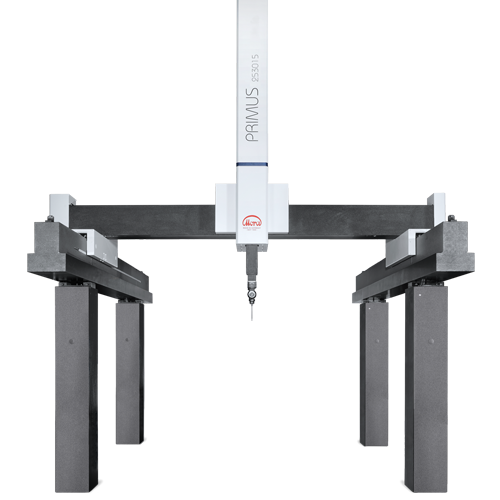

Primus GT - Bridge-Type Coordinate Measuring Machines

MORA Measuring Machine Type:

PRIMUS GT 152515

---

The Primus GT high-gantry measuring machine, unlike the Primus L, features two upper guide axes equipped with a high-precision dynamic dual-drive system.
Thanks to this weight reduction, large measuring ranges can be achieved without compromising dynamics or accuracy.
In addition to the Primus and Primus L, the Primus GT is equipped with high-precision air bearings and dynamic drives on all axes.
The high-resolution scale system, combined with a powerful controller, completes the machine concept.

 .



• GANTRY-type machine for CNC operation.



• Granite structure with exceptionally high rigidity.



• High-precision natural stone guideways.



• The use of low-friction air cushion bearings ensures smooth and low-vibration movement.



• High movement speed.



• Non-contact measuring system for high-precision data acquisition.



Measurement Range:

• X 1500 mm (width)
• Y 2500 mm (length)
• Z 1500 mm (height)



Overall Dimensions:

• X 2915 mm (width)
• Y 5320 mm (length)
• Z 4200 mm (height)



Technical Data:

• Weight: 8,000 kg
• Max. table load: Not applicable
  • Spatial movement speed: 350 mm/s
  • Acceleration: 1380 mm/s²



Accuracy Standard:

• MPEE = 4,2 + L / 200 µm
• MPEp = 4,2 µm



L = Measuring length in mm — Acceptance testing according to ISO 10360-2.



Temperature and Air Conditions:

• • Temperature: 20 °C ± 2 °C
  • Clean and dry compressed air: minimum 6 bar



Control System:

• CNC - 3 axes



Incluye funciones múltiples de joystick

• • Electrical power: 2500 VA 90–240 V ±10%
  • Frequency: 50/60 Hz
