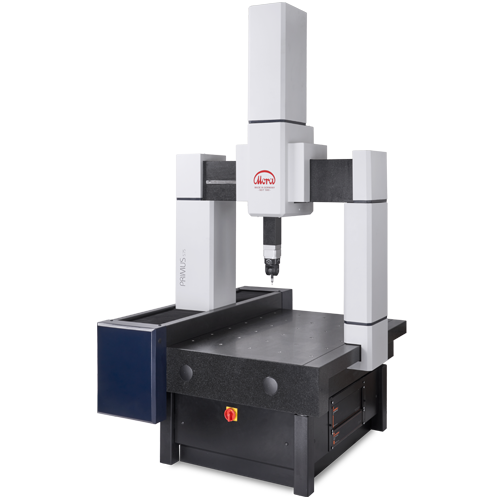

Primus - Bridge-Type Coordinate Measuring Machines

It features a compact and stable concept, complemented by high-precision air bearings and dynamic drives on all axes.

---



Our new Primus bridge-type measuring machine is the result of intensive development efforts based on the latest modern engineering technology. A completely new lightweight machine concept combined with highly dynamic drive systems enables a technically innovative next-generation measuring machine.

Primus combines greater precision with enhanced dynamic drives in a contemporary design. The enclosed guide components ensure resistance to dirt while maintaining a compact machine structure. Depending on the required measurement range, the Primus machine type is available in standard or higher precision versions.

A highly accurate scale system, together with a powerful controller, guarantees machine precision. The use of granite on all axes ensures consistent thermal behavior of the coordinate measuring machine. Our Primus bridge measuring machine is used across all production and quality control divisions. Whether for prototype construction or serial production, the Primus offers universal application versatility.

 .



Measurement Ranges and Accuracy



Axis	X / Length	Y / Width	Z / Height
From	500	700	500
Up to	1500	5000	1200



Accuracy: 1.3 + L/300

The stated accuracy is valid for the smallest measuring range and for an ambient temperature of 20 °C. Special sizes and special accuracies are available upon request.



••••••

Probe Systems



Primus is compatible with various probe systems:

1. PH6 fixed probe head
2. PH10T motorized indexing probe head
3. PH10M motorized indexing probe head
4. PH20 continuous indexing probe head
5. REVO continuous indexing probe head
6. TP20 probe system
7. TP200 probe system
8. SP25 scanning probe
9. Alternative probe systems available upon request
10. 3D optical sensors available upon request
11. Rack changers for probe systems available upon request



Options

• Active pneumatic vibration isolation
• Active temperature compensation on all axes, including the workpiece
• Air preparation systems (e.g., air dryers)
• Loading systems and palletizing systems



Hand Controller

• Wired hand controller
• Wireless hand controller



Software

• Inca3D software options
